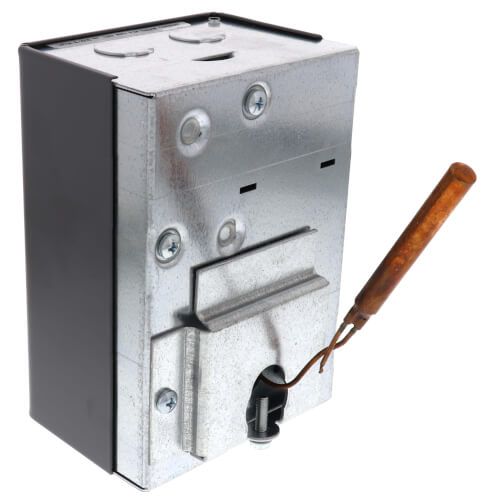

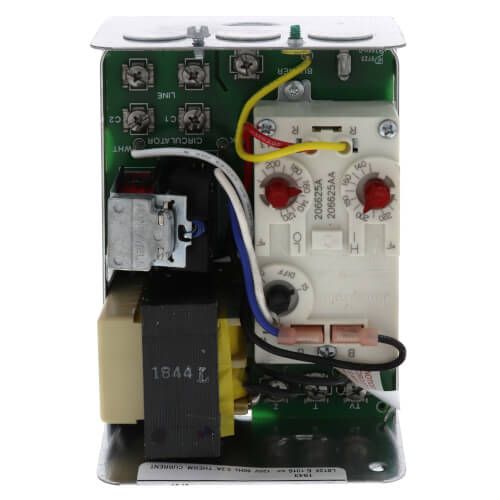

Resideo L8124E1016 - High Limit Triple Vertical Mount Aquastat Relay, High = 10-Degree(F) Diff, Low = 10-25-Degree(F) Adj Differential
Brand:
SKU
L8124E1016
Application: High Limit, Triple Aquastat Relay
Switch Action: SPST
Temperature Range (F): 110°F to 220°F, 130°F to 240°F
Electrical Rating: Burner: 3.7 A @ 240 Vac, Circulator: 3.7 A @ 240 Vac, Circulator: 7.4 A @ 120 Vac, Burner: 7.4 A @ 120 Vac
Electrical Ratings (ALR): Burner: 44.4 A @ 120 Vac, Burner: 22.2 A @ 240 Vac, Circulator: 44.4 A @ 120 Vac, Circulator: 22.2 A @ 240 Vac
Max Temp Differential: 25°F, 10°F
Differential: Fixed, 10° to 25°F (Low Limit), Adjustable
Min Temp Differential: 10°F
Height: 6-1/8"
Width: 4-3/8"
Depth (Inches): 3-1/16"
Operating Humidity: 0% to 95% (non-condensing)
Max Ambient Temp (°F): 150 F at Switches, 265 F at Sensing Element
Mount: Vertical
Voltage: 120v
Frequency: 60 Hz
Max Pressure (PSI): 100 (Direct Immersion), 200 (Immersion Well)
Connection Type: Quick-Connect
