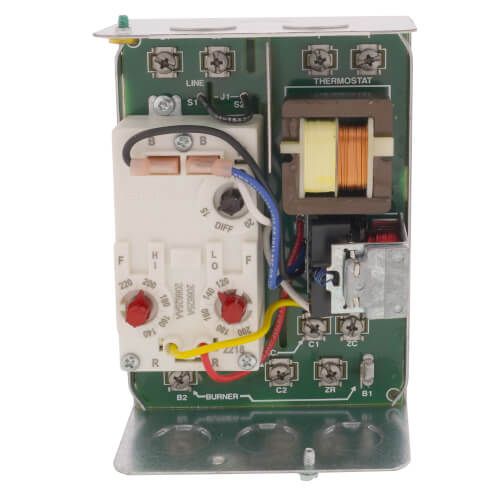

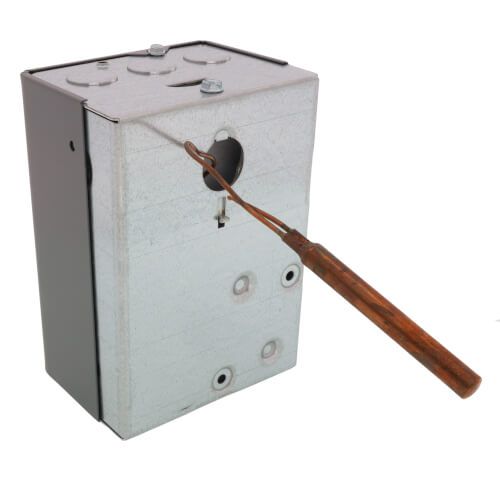

Resideo L8124A1007 - High Limit Protection, Low Limit & Circulator Triple Aquastat Relay, High = 10-Degree(F), Low Limit = 10-25-Degree Adj Differential
Brand:
SKU
L8124A1007
Hydronic Control Relay
Item Control Relay
Type Multi-Function
Switch Type SPST (High Limit), SPDT (Low Limit and Circulator Control)
Overall Dimensions 4-3/8 Inch Width x 3-1/16 Inch Depth x 6-1/8 Inch Height
Input Supply Rating 120 Volt AC at 60 Hertz
Temperature Rating 130 to 240 Deg F (High Limit), 110 to 220 Deg F (Low Limit)
Pressure Rating 200 PSI (Immersion Well)
Media Handled Hot Water
Inclusions/Features High Limit Protection, Low Limit and Circulation Control, Diaphragm Powerhead
Application Domestic Hydronic Heating System
Applicable Standard UL, CSA
Insulation Depth 1-1/2 Inch
Mounting Position Vertical
Connection Type Quick Connect/Screw
Humidity 0 to 95 Percent RH (Non-Condensing)
Differential Temperature 10 Deg F High Limit (Fixed), 10 to 25 Deg F Adjustable (Low Limit)
Ambient Temperature 150 Deg F (Case)/265 Deg F (Sensing Element)
Burner/Circulator Electrical Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC Full Load, 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC Locked Rotor
