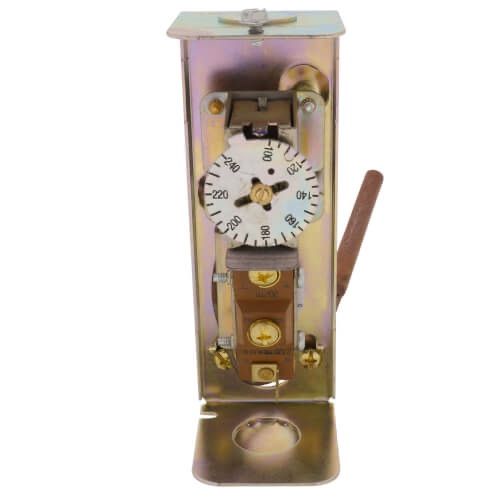

Resideo L6006A1244 - High or Low Limit & Circulator Aquastat, 100 - 240-Degree(F) Range, 5 - 30-Degree(F) Adj Differential
Brand:
SKU
L6006A1244
Application: High Limit, Circulator Control, Low Limit
Switch Action: SPDT
Temperature Range (F): 100°F to 240°F
Electrical Rating: 5.1A @ 240 Vac, 8A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc
Electrical Ratings (ALR): 30.6A @ 240 Vac, 48A @ 120 Vac
Max Temp Differential: 30°F
Differential: 5° to 30°F, Adjustable
Min Temp Differential: 5°F
Max Ambient Temp (°F): 150°F
Height: 5-5/8"
Width: 2"
Depth (Inches): 2-1/8"
Well Included: No
Mount: Vertical, Horizontal
Resideo L6006A1244 - High or Low Limit & Circulator Aquastat, 100 - 240-Degree(F) Range, 5 - 30-Degree(F) Adj Differential
Application: High Limit, Circulator Control, Low Limit
Switch Action: SPDT
Temperature Range (F): 100°F to 240°F
Electrical Rating: 5.1A @ 240 Vac, 8A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc
Electrical Ratings (ALR): 30.6A @ 240 Vac, 48A @ 120 Vac
Max Temp Differential: 30°F
Differential: 5° to 30°F, Adjustable
Min Temp Differential: 5°F
Max Ambient Temp (°F): 150°F
Height: 5-5/8"
Width: 2"
Depth (Inches): 2-1/8"
Well Included: No
Mount: Vertical, Horizontal
