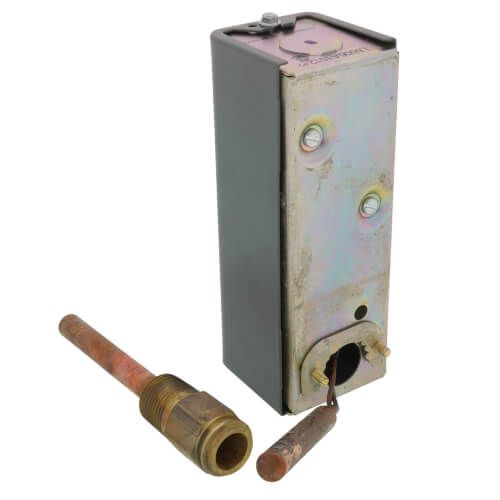

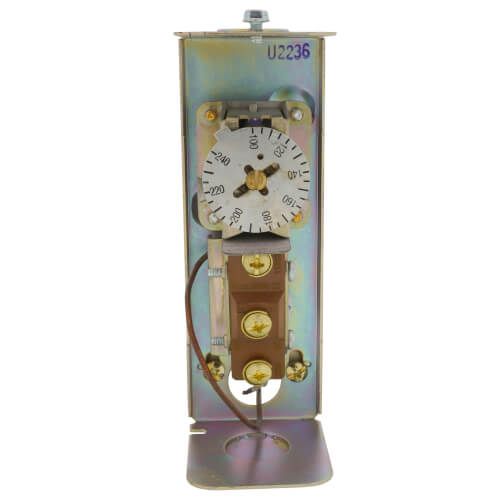

Resideo L6006A1012 - High or Low Limit & Circulator Aquastat, 100-240-Degree(F) range, 5-30-Degree(F) Adj Differential
Brand:
SKU
L6006A1012
Application: Circulator Control, Low Limit, High Limit
Switch Action: SPDT
Well Spud Size: 1/2" NPT
Temperature Range (F): 100°F to 240°F
Electrical Ratings (ALR): 48A @ 120 Vac, 30.6A @ 240 Vac
Electrical Rating: 5.1A @ 240 Vac, 0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac
Differential: Adjustable, 5° to 30°F
Max Temp Differential: 30°F
Min Temp Differential: 5°F
Max Ambient Temp (°F): 150°F
Height: 5-5/8"
Width: 2"
Depth (Inches): 2-1/8"
Well Included: Yes
Mount: Vertical, Horizontal
