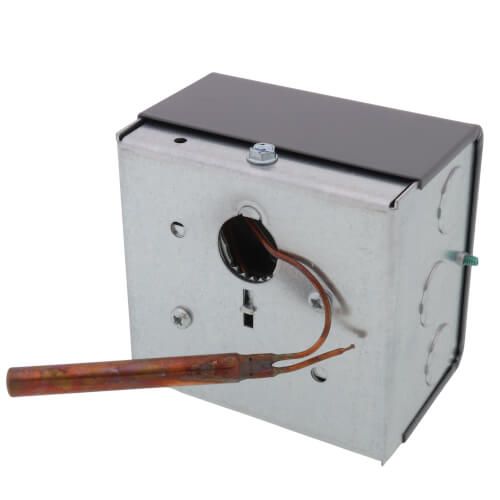

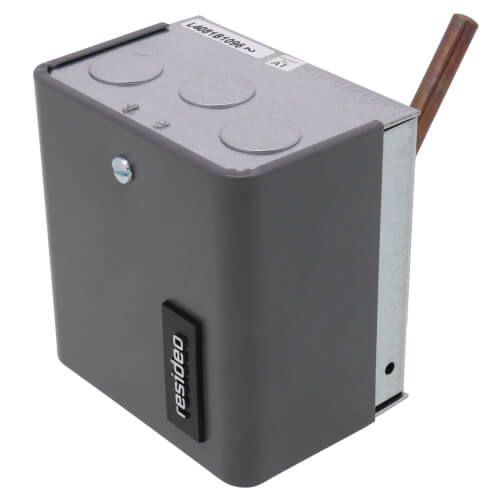

Resideo L4081B1096 - High Limit & Circulator Aquastat, 10-Degree (F) Differential
Brand:
SKU
L4081B1096
Aquastat Controller
Type Horizontal Immersion, Multiple, High Limit, Circulator
Temperature Range 130 to 240 Deg F (High Limit), 110 to 220 Deg (Low Limit)
Maximum Temperature Rating 150 Deg F (Switch), 265 Deg F (Sensing Element)
Contact Rating 8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt DC (Millivolt), 360 Volt Amp (Transformer Load)
Contact Configuration SPST
Connection Type 1/2 Inch Conduit
Application Gas/Oil Fired Hydronic Heating System
Approval UL, CSA
Overall Dimension 4-1/8 Inch Width x 2-3/4 Inch Depth x 3-7/8 Inch Height
Differential Temperature Rating 10 Deg F Fixed
Pressure Rating 200 PSI (Well Mounted), 100 PSI (Direct Immersion)
Insulation Depth 3 Inch
Knockout Size 7/8 Inch Diameter
Humidity Range 0 to 95 Percent Relative, Non-Condensing
