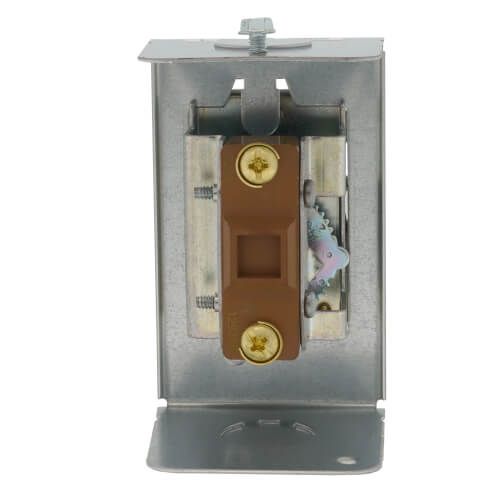

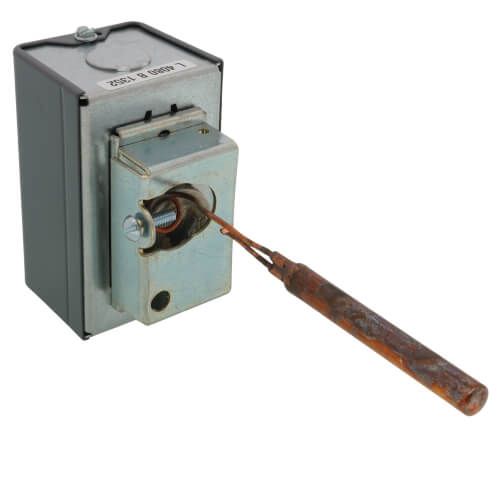

Resideo L4080B1352 - High Limit Immersion Aquastat, 100-150-Degree (F) Range
Brand:
SKU
L4080B1352
Aquastat Controller
Type Vertical Well Immersion, High Limit
Temperature Range 100 to 200 Deg F
Maximum Temperature Rating 40 Deg F (above Set Point) or 265 Deg F (Lower)
Contact Rating 8 Amp at 120 Volt AC/4 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC/24 Amp at 240 Volt AC (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt DC (Millivolt)
Contact Configuration Breaks Contact on Temperature Rise
Application Hydronic Heating System
Approval UL, CSA, AGA
Overall Dimension 2 Inch Width x 2-1/2 Inch Depth x 3-7/8 Inch Height
Differential Temperature Rating 8 Deg F
Pressure Rating 225 PSI
Insertion Depth 1-1/2 to 3 Inch
Includes Siphon Loop
