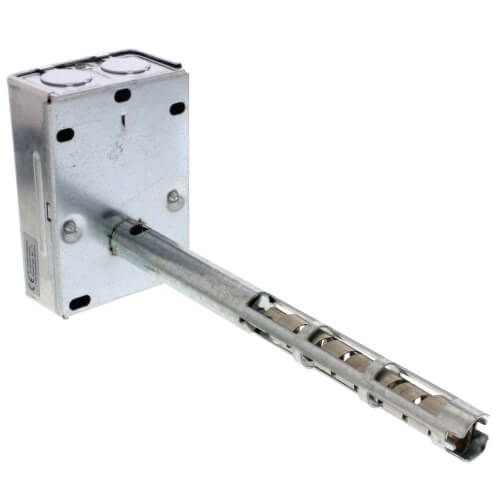

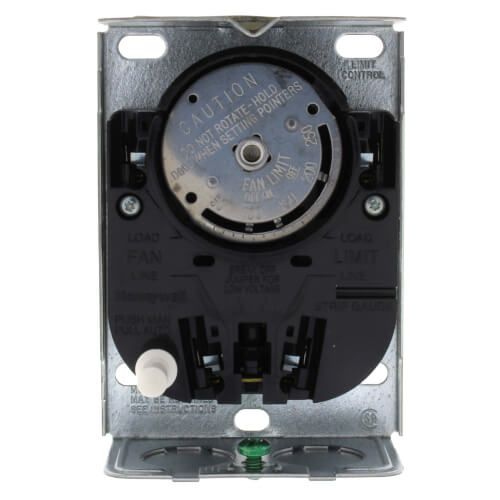

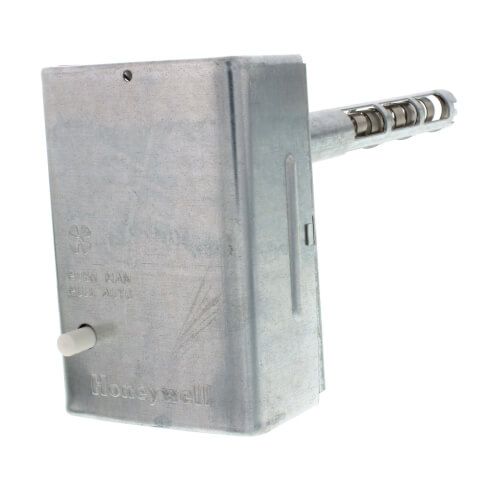

Resideo L4064B2236 - Fan and Limit Controller w/ 125 F Fan on/100 F Fan off, 200 F High Limit, 8" Insertion
Brand:
SKU
L4064B2236
Application: Fan Control, Limit Control
Temperature Range (F): 100°F to 250°F
Fan Off: 50°F to 200°F
Element Length: 8"
Fan On: 65°F to 215°F
High Limit Stop: 200°F
Fan-Off Stop: 100°F
Fan-On Stop: 125°F
Switch Action: Fan switch makes on temp rise, High Limit switch breaks on temp rise
Electrical Rating:
Fan (AFL): 7 A @ 240 Vac, Limit (AFL): 4 A @ 240 Vac, Limit (AFL): 8A @ 120 Vac, Fan (AFL): 14A @ 120 Vac
Pilot Duty Rating: 0.25A @ 0.25 to 12 Vdc, 2A @ 24 Vac
Differential: High Limit: 25°F
Mount: Surface
Depth (Inches): 1-19/32"
Width: 3"
Height: 4-9/32"
