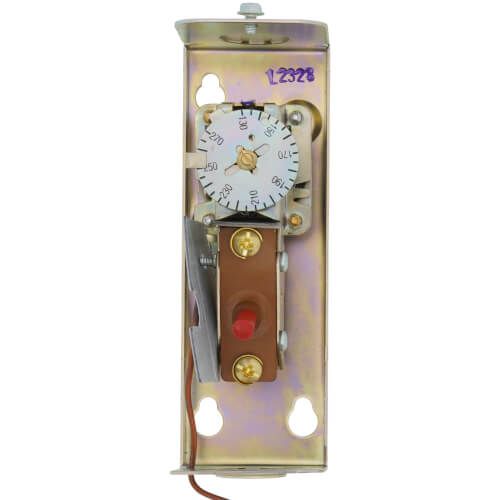

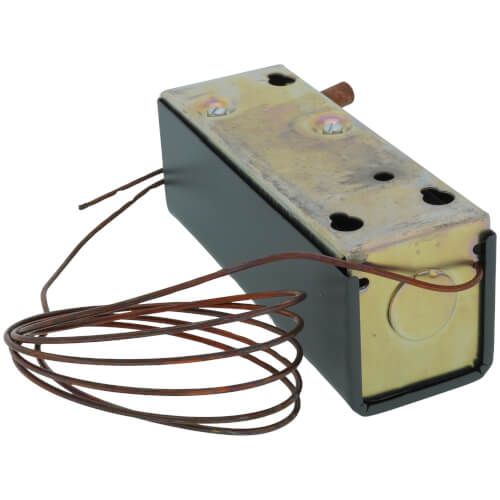

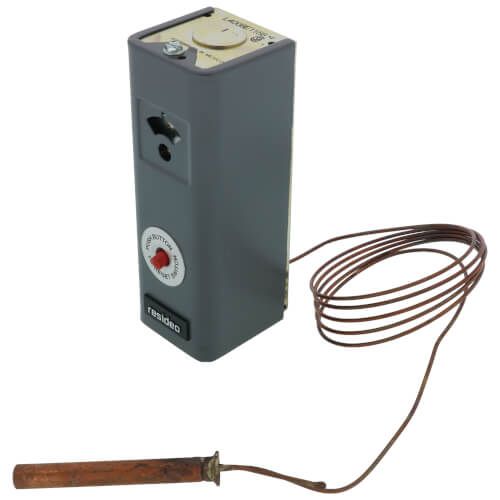

Resideo L4008E1156 - High Limit Remote Bulb Aquastat, 130-270-Degree (F) range, Manual Reset
Brand:
SKU
L4008E1156
Remote Bulb Aquastat Controller
Type 3/8 Inch Diameter x 2-7/8 Inch Length Copper Bulb, 66 Inch Length Capillary, Horizontal/Vertical Immersion, High Limit, Manual Reset
Temperature Range 130 to 270 Deg F
Maximum Temperature Rating 150 Deg F
Contact Rating 8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt DC (Millivolt)
Contact Configuration SPST, Contact Break on Temperature Rise
Connection Type 3/4 Inch Conduit, Screw Terminal
Application Boiler, Storage Tank
Approval UL, CSA
Overall Dimension 2 Inch Width x 2-1/8 Inch Depth x 5-5/8 Inch Height
Pressure Rating 200 PSI (Capillary Bulb), 255 PSI (Immersion Well)
Sensing Bulb Fill Liquid Toluene or Silicone Oil
