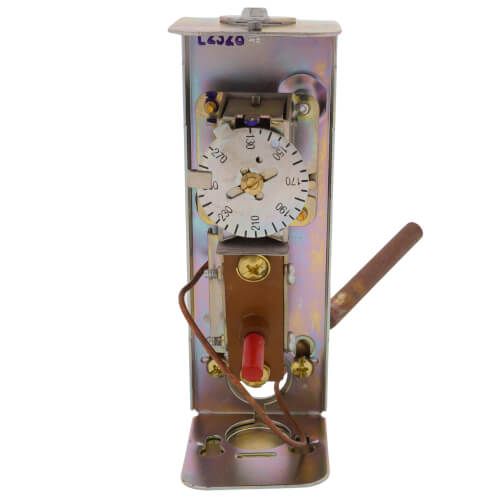

Resideo L4006E1067 - High Limit Aquastat, 130-270-Degree (F) range, Manual Reset
Brand:
SKU
L4006E1067
Aquastat Controller
Type 3/8 Inch Diameter x 2-7/8 Inch Length Copper Bulb, 3 Inch Length Capillary, Direct Horizontal/Vertical Well Immersion, High Limit, Manual Reset
Temperature Range 130 to 270 Deg F
Maximum Temperature Rating 150 Deg F
Contact Rating 8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt DC (Millivolt)
Contact Configuration SPST, Contact Break on Temperature Rise
Connection Type 3/4 Inch Conduit, Screw Terminal
Application Boiler, Storage Tank
Approval UL, CSA, AGA
Overall Dimension 2 Inch Width x 2-1/8 Inch Depth x 5-5/8 Inch Height
Pressure Rating 200 PSI (Capillary Bulb), 255 PSI (Immersion Well)
Sensing Bulb Fill Liquid Toluene or Silicone Oil
Includes Stop Factory Set at 250 Deg F, Heat Conductive Compound, Well Adapter
