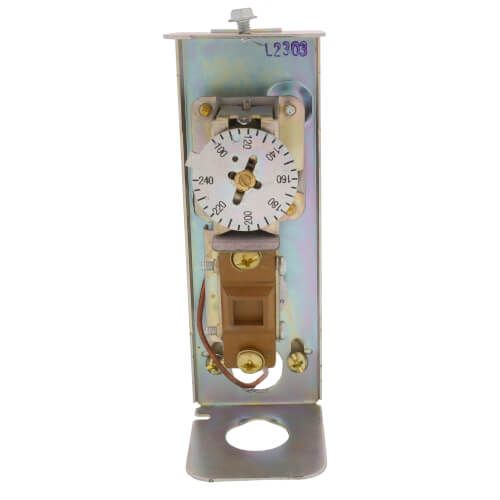

Resideo L4006B1163 - Circulator Aquastat, 100-240-Degree(F) range, 5-30-Degree(F) Adj Differential
Brand:
SKU
L4006B1163
Aquastat Controller
Type 3/8 Inch Diameter x 2-7/8 Inch Length Copper Bulb, 3 Inch Length Capillary, Direct Horizontal/Vertical Well Immersion, Circulator
Temperature Range 100 to 240 Deg F
Maximum Temperature Rating 150 Deg F
Contact Rating 8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt DC (Millivolt)
Contact Configuration SPST, Contact Break on Temperature Rise
Connection Type 3/4 Inch Conduit, Screw Terminal
Application Boiler, Storage Tank
Approval UL, CSA, AGA
Overall Dimension 2 Inch Width x 2-1/8 Inch Depth x 5-5/8 Inch Height
Differential Temperature Rating 5 to 30 Deg F Adjustable
Pressure Rating 200 PSI (Capillary Bulb), 255 PSI (Immersion Well)
Sensing Bulb Fill Liquid Toluene or Silicone Oil
