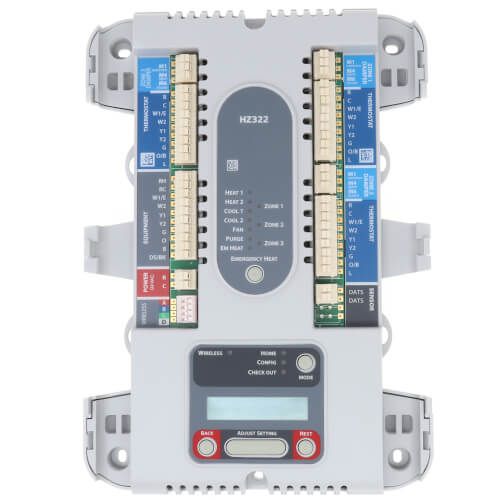

Honeywell Home HZ322 - TrueZONE HZ322 Panel
Brand:
SKU
HZ322
Zone Control Panel
Item Control Panel
Type 3-Zone, 2-Heat/1-Cool Stage
Overall Dimensions 8 Inch Width x 1.86 Inch Depth x 11.5 Inch Height
Input Supply Rating 24 Volt 7.5 Volt Amp
Temperature Rating -40 to 165 Deg F
Inclusions/Features LED, Auto Changeover, Discharge Air Temperature Sensor, Resettable Fuse, Zone Fan Control
Application Conventional 1-Stage Zoning Heat Pump
Transformer Rating 18 to 30 Volt AC 50/60 Hertz
Wire Type 18 or 20 Gauge Solid
Mounting Type Wall
Humidity 5 to 90 Percent RH (Non-Condensing)
