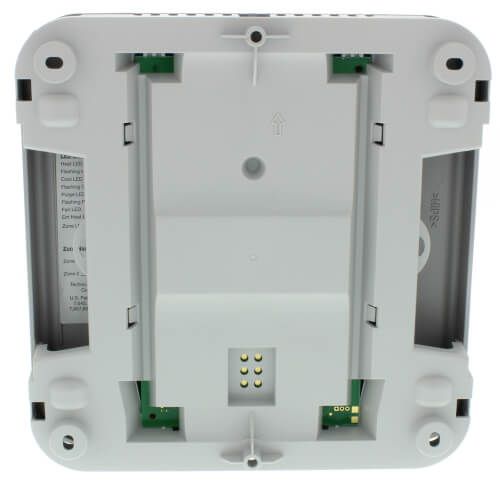

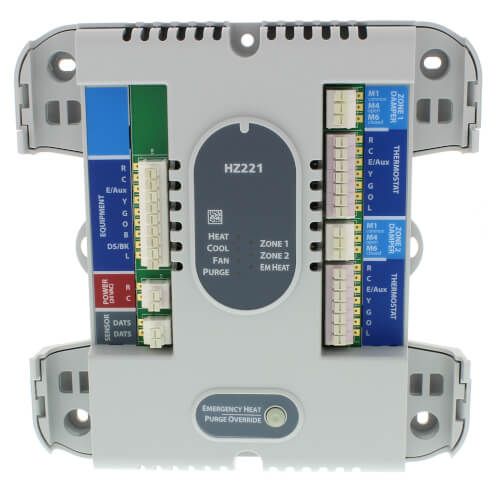

Honeywell Home HZ221 - TrueZone HZ221 Panel
Brand:
SKU
HZ221
TrueZONE HZ221 Panel for single stage heat pumps with auxiliary heat applications up to two zones
Features:
Robust Push Terminals
Common-Sense LEDs
Clean, Professional Installation
Smaller Footprint
Variable-Speed Fan Control
Application: Zoning
Number of Zones: 2
Network Zoning: No
Heat Pump Compatible: Yes
Stages: 1 Stage Heat Pump with Aux Heat
Auto Changeover: Yes
Voltage: 24v
Discharge Air Temp Compatible: Yes
Emergency Heat Switch: Yes
Resettable Fuse: Yes
Individual Zone Fan Control: Yes
LEDs: Yes
Depth (Inches): 1-55/64"
Height: 8-1/8"
Width (Inches): 8"
Wiring: 18-20 Gauge Solid
Hertz: 50, 60
Temperature Range (F): -40°F - 165°F
