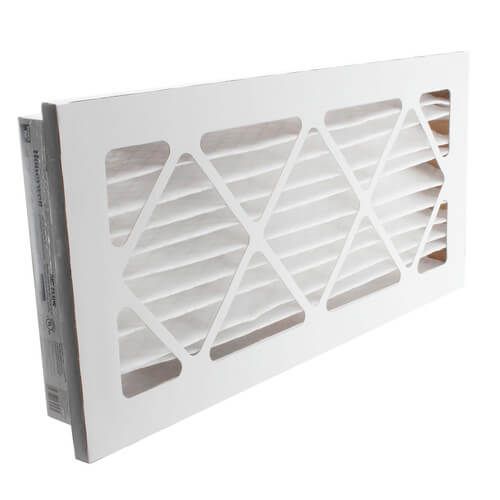

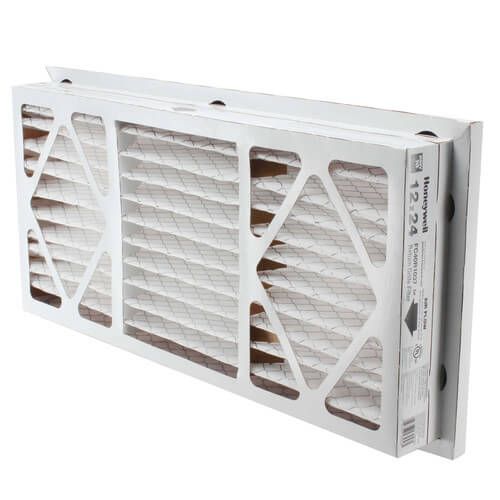

Honeywell Home FC40R1037 - 12" x 24" Return Grill Media Air Filter
Brand:
SKU
FC40R1037
Note: The Actual Dimensions of this filter are: 11-3/4" x 23-3/4"
Note: Dimensions listed are Nominal Dimensions, for exact dimensions refer to the submittal sheet.
Updated FC40R filters are over 30% smaller in depth, This change increases the flexibility without reducing the capture efficiency or dust holding capacity with the new configuration of the pleats it provides the same media in smaller space.
The Return Grille Filter provides high efficiency, long life alternative to a 1" filter. It captures a significant amount of the airborne particles in the air that circulates through the filter.
Features:
Mounts in most return filter grilles.
Pleated for greater media capacity.
Low pressure drop provides a comfortable air flow.
Maintains equipment efficiency longer than standard filters.
FC40 is MERV 10.
FC20 is MERV 8.
Specifications:
Application: Return Grill
Airflow Max. Capacity (cfm): 800 cfm
Efficiency Standard: Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2-1999.
Fractional efficiency: E1=31%, E2=61%, E3=86%
Minimum Efficiency Reporting Value (Media Filters Only): MERV 10
Type of Air Cleaner: Media Air Cleaner
Product Type: Return Grille Filter
Size: 12" x 24" x 3"
MERV: 10
