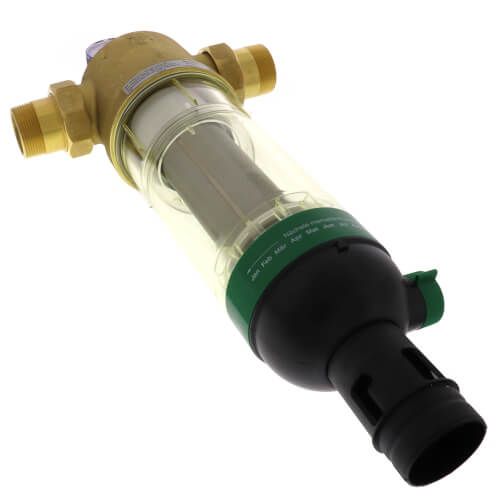

Resideo Braukmann F76S1049 - 1-1/2" Sediment Removal Water Filter (Plastic)
Brand:
SKU
F76S1049
Description - 1-1/2 inch Water filter
Pipe Size (inch)- 1-1/2 in.
Pipe Size (DN)- DN15
Connection Type - NPT External Threaded and Sweat
Sump - Clear Plastic
Capacity (Cv) - 26 Cv
Capacity (Kv) - 22.3 Kv
Pressure Ratings (psi) - 230 psi maximum
Dimensions (in.) - 20 5/16 in. high x 10 1/2 in. wide x 4 3/4 in. deep
Dimensions (mm) - 532 mm high x 246 mm wide x 119 mm deep
Weight (lb) - 8.8 lb
Weight (g) - 4 kg
Screen Size - 100 micron screen
Temperature Rating (F) - 104 F Maximum
Materials (Body) - Brass
Temperature Rating (C) - 40 C Maximum
Includes - gauge and service wrench
