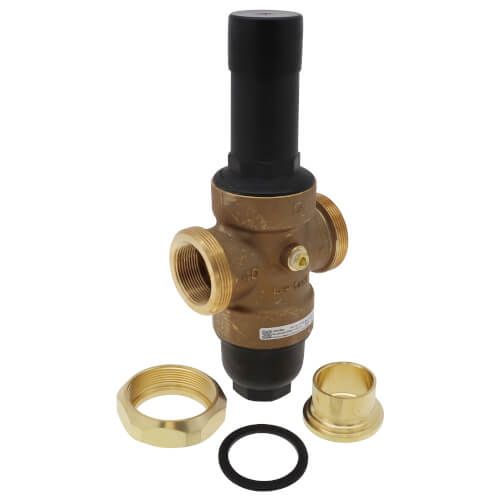

Resideo Braukmann DS06-104-SUS-LF - 1-1/2" Single Union Sweat DialSet Pressure Regulating Valve (Lead Free)
Brand:
SKU
DS06-104-SUS-LF
Dimensions: 8 5/8" High x 6" Long
Operating Temperature Range: 140 F Maximum
Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
Outlet Pressure Adjustment Range: 25-90 PSI
Max. Inlet Pressure Rating: 250 PSI
Gauge Tap: 1/4 in. NPT (two, one on each side of body).
Reducing Ratio: 10:1 Maximum
Union Fittings: Single-Union Threaded
Approvals, ASSE: Certified 1003-2027
Approvals, IAPMO: Listed
