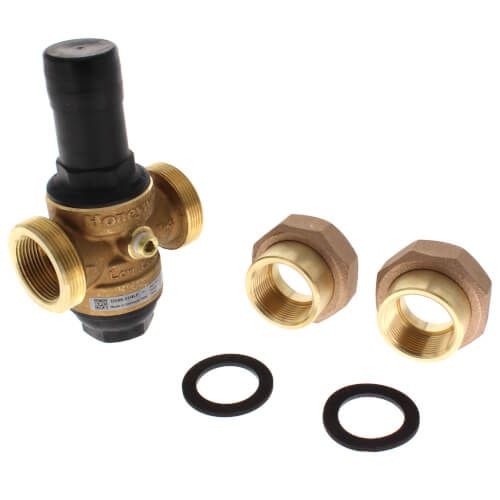

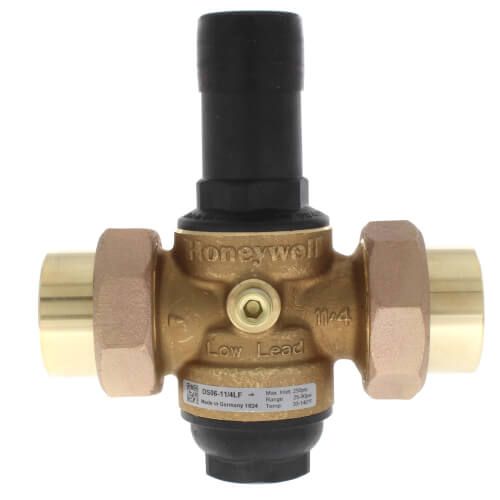

Resideo Braukmann DS06-103-DUT-LF - 1-1/4" Double Union NPT DialSet Pressure Regulating Valve (Lead Free
Brand:
SKU
DS06-103-DUT-LF
Operating Temperature Range: 140 F Maximum
Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
Outlet Pressure Adjustment Range: 25-90 PSI
Max. Inlet Pressure Rating: 250 PSI
Gauge Tap: 1/4 in. NPT (two, one on each side of body).
Reducing Ratio: 10:1 Maximum
Union Fittings: Double-Union Threaded
Approvals, IAPMO: Listed
Resideo Braukmann DS06-103-DUT-LF - 1-1/4" Double Union NPT DialSet Pressure Regulating Valve (Lead Free
Operating Temperature Range: 140 F Maximum
Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
Outlet Pressure Adjustment Range: 25-90 PSI
Max. Inlet Pressure Rating: 250 PSI
Gauge Tap: 1/4 in. NPT (two, one on each side of body).
Reducing Ratio: 10:1 Maximum
Union Fittings: Double-Union Threaded
Approvals, IAPMO: Listed
