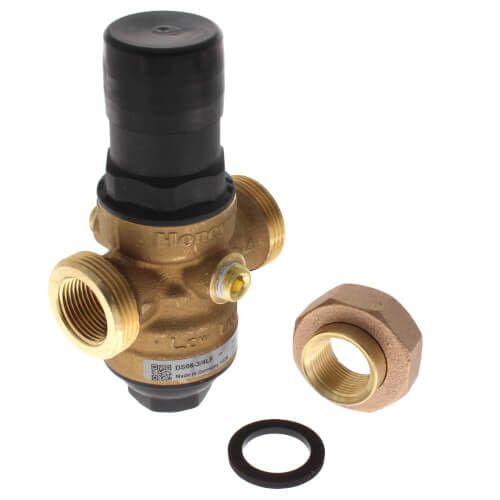

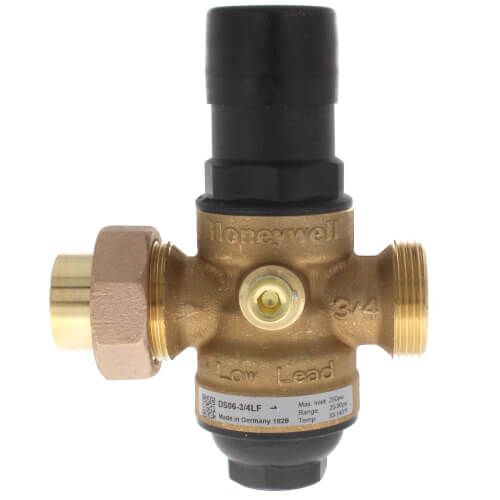

Resideo Braukmann DS06-101-SUT-LF - 3/4" Single Union NPT DialSet Pressure Regulating Valve (Lead Free)
Brand:
SKU
DS06-101-SUT-LF
Pressure Regulating Valve
Nominal Size 3/4 Inch
End Connection Female Threaded x Female Threaded
Body Material Bronze
Diaphragm Material Fabric Reinforced
Downstream Pressure Range 25 to 90 PSI
Standard Factory Setting 60 PSI
Strainer Supplied Yes
Temperature Rating 140 Deg F
Pressure Rating 250 PSI
Inclusions/Features Dial Set, Non-Corroding Unitized Cartridge, Strainer
Application Potable Water and Irrigation
Applicable Standard CSA B356, ASSE 1003, IAPMO/UPC, NSF 61
Lead-Free
Overall Dimension 3-35/64 Inch Length x 5-53/64 Inch Height
Gauge Tap Size 1/4 Inch Threaded
Union Fitting Type Single Union Threaded
