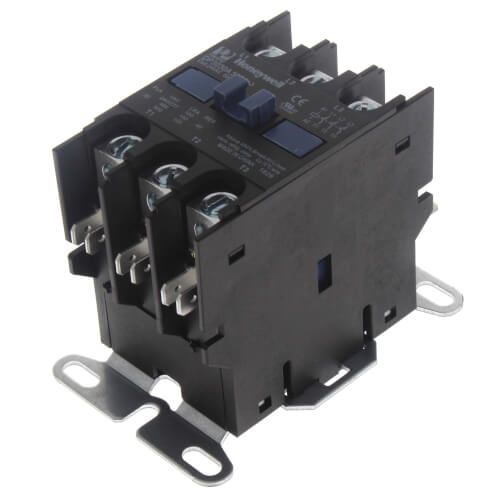

Resideo DP3030A5004 - 24 Vac 3 Pole PowerPro Definite Purpose Contactor (30 A)
Brand:
SKU
DP3030A5004
Definite Purpose Contactor
Type Electromagnetically Operated, Deluxe
Number of Poles 3
Current Rating 30 Amp at 240/277/480/600 Volt AC
Resistive Ampere 40 Amp at 240/277/480/600 Volt AC
Coil Voltage 24 Volt AC
Auxiliary Contact DPST
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 3.62 Inch Width x 2.4 Inch Depth x 3.1 Inch Height
Terminal Type Lug
Contact Connection 1/4 Inch Quick Connect and #6 Screw
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
Resideo DP3030A5004 - 24 Vac 3 Pole PowerPro Definite Purpose Contactor (30 A)
Definite Purpose Contactor
Type Electromagnetically Operated, Deluxe
Number of Poles 3
Current Rating 30 Amp at 240/277/480/600 Volt AC
Resistive Ampere 40 Amp at 240/277/480/600 Volt AC
Coil Voltage 24 Volt AC
Auxiliary Contact DPST
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 3.62 Inch Width x 2.4 Inch Depth x 3.1 Inch Height
Terminal Type Lug
Contact Connection 1/4 Inch Quick Connect and #6 Screw
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
