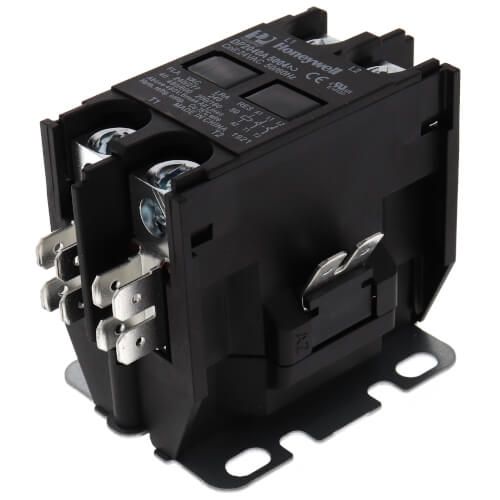

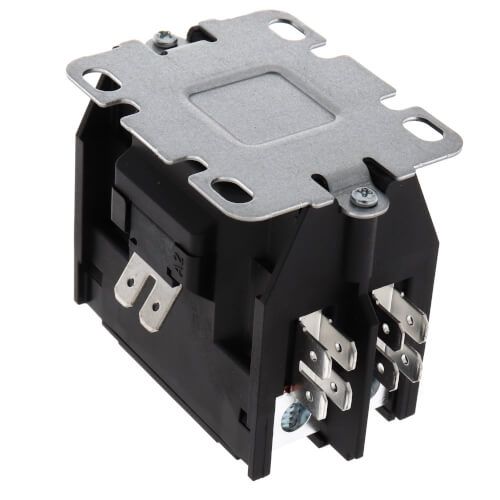

Resideo DP2040A5004 - 24 Vac 2 pole Definite Purpose Contactor w/ Lug Connectors
Brand:
SKU
DP2040A5004
Definite Purpose Contactor
Type Electromagnetically Operated, Deluxe
Number of Poles 2
Current Rating 40 Amp at 240/277 Volt AC
Resistive Ampere 48 Amp at 240/277 Volt AC
Coil Voltage 24 Volt AC
Auxiliary Contact DPST
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 3.2 Inch Width x 2 Inch Depth x 2.36 Inch Height
Terminal Type Lug
Contact Connection 1/4 Inch Quick Connect and #6 Screw
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
