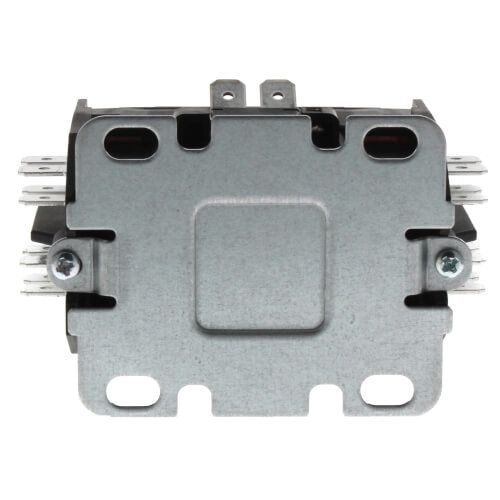

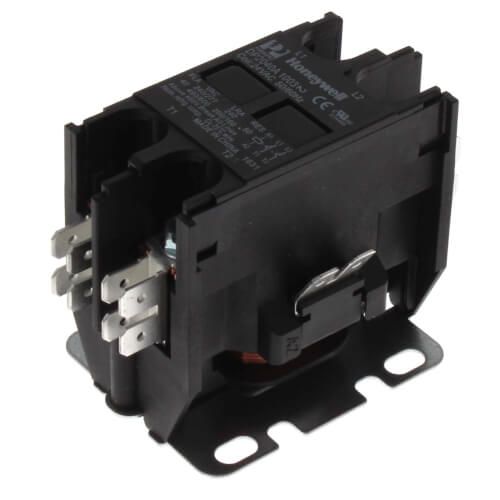

Resideo DP2040A1003 - 24C Vac 2 pole Definite Purpose Contactor (40 A)
Brand:
SKU
DP2040A1003
Definite Purpose Contactor
Type Electromagnetically Operated
Number of Poles 2
Current Rating 40 Amp at 240/277/480/600 Volt AC
Resistive Ampere 50 Amp at 240/277/480/600 Volt AC
Coil Voltage 24 Volt AC
Auxiliary Contact DPST
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 3.3 Inch Width x 2 Inch Depth x 2.37 Inch Height
Terminal Type #10 to 32 Combination Head Screw
Contact Connection 1/4 Inch Quick Connect
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
