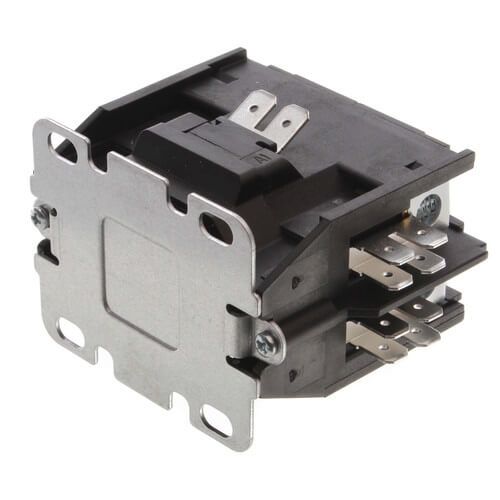

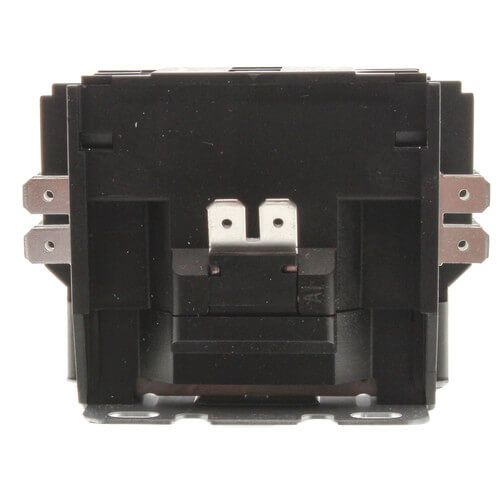

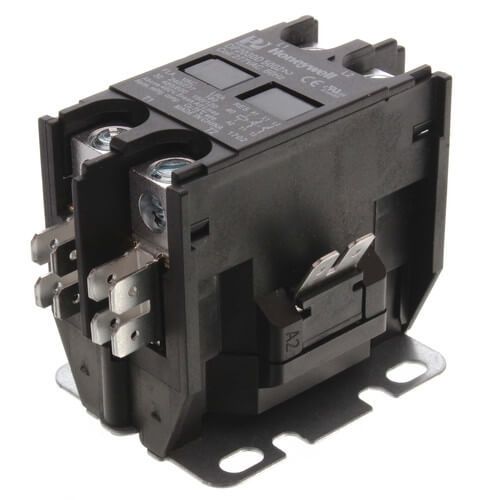

Resideo DP2030D5002 - 2 Pole, 30 Amp, 277 VAC PowerPro Definite Purpose Contactor
Brand:
SKU
DP2030D5002
Definite Purpose Contactor
Type Electromagnetically Operated, Deluxe
Number of Poles 2
Current Rating 30 Amp at 240/277 Volt AC
Resistive Ampere 40 Amp at 240/277/480/600 Volt AC
Coil Voltage 277 Volt AC
Auxiliary Contact DPST
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 2.5 Inch Width x 3.31 Inch Depth x 2.2 Inch Height
Terminal Type Lug
Contact Connection 1/4 Inch Quick Connect
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
