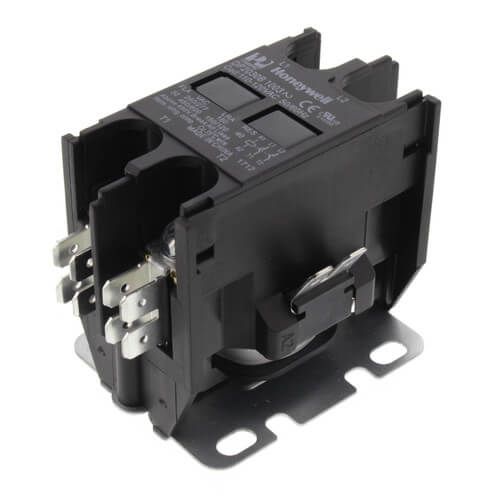

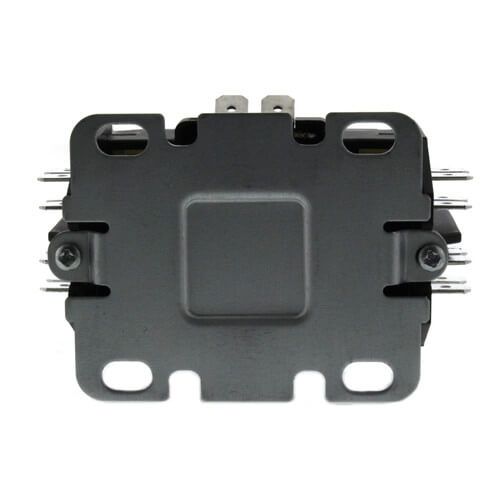

Resideo DP2030B1003 - 120 Vac 2 pole Definite Purpose Contactor (30 A)
Brand:
SKU
DP2030B1003
Definite Purpose Contactor
Type Electromagnetically Operated
Number of Poles 2
Current Rating 30 Amp at 240/277/480/600 Volt AC
Resistive Ampere 40 Amp at 240/277/480/600 Volt AC
Coil Voltage 120 Volt AC
Auxiliary Contact DPST
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 3.31 Inch Width x 2.17 Inch Depth x 2.2 Inch Height
Terminal Type #10 to 32 Combination Head Screw
Contact Connection 1/4 Inch Quick Connect
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
