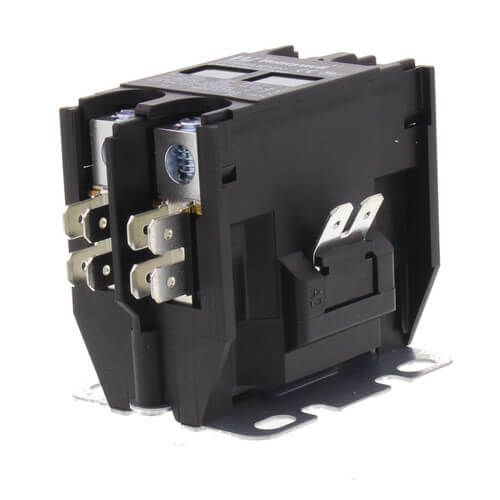

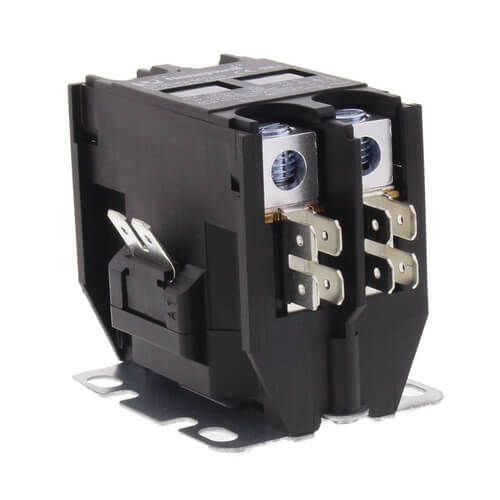

Resideo DP2030A5013 - 24 Vac 2 pole Definite Purpose Contactor (30 A)
Brand:
SKU
DP2030A5013
Definite Purpose Contactor
Type Electromagnetically Operated, Deluxe
Number of Poles 2
Current Rating 30 Amp at 240/277 Volt AC
Resistive Ampere 40 Amp at 240/277 Volt AC
Coil Voltage 24 Volt AC
Auxiliary Contact DPST
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 3.63 Inch Width x 3.8 Inch Depth x 3.25 Inch Height
Terminal Type Lug
Contact Connection 1/4 Inch Quick Connect
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
Resideo DP2030A5013 - 24 Vac 2 pole Definite Purpose Contactor (30 A)
Definite Purpose Contactor
Type Electromagnetically Operated, Deluxe
Number of Poles 2
Current Rating 30 Amp at 240/277 Volt AC
Resistive Ampere 40 Amp at 240/277 Volt AC
Coil Voltage 24 Volt AC
Auxiliary Contact DPST
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 3.63 Inch Width x 3.8 Inch Depth x 3.25 Inch Height
Terminal Type Lug
Contact Connection 1/4 Inch Quick Connect
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
