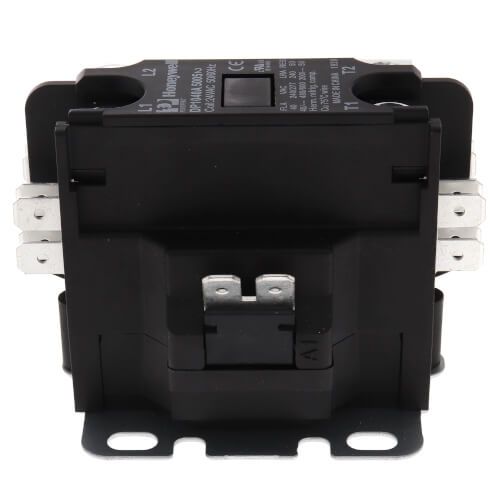

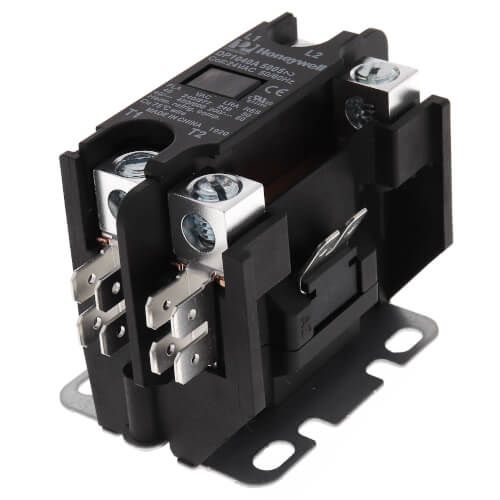

Resideo DP1040A5005 - 24 Vac 1 Pole Definite Purpose Contactor (40 Amps)
Brand:
SKU
DP1040A5005
Definite Purpose Contactor
Type Electromagnetically Operated, Deluxe
Number of Poles 1
Current Rating 40 Amp at 240/277 Volt AC
Resistive Ampere 50 Amp at 240/277 Volt AC
Coil Voltage 24 Volt AC
Enclosure Open
Approval UL, CSA, CUR
Overall Dimension 3.2 Inch Width x 2 Inch Depth x 2.36 Inch Height
Terminal Type Lug
Contact Connection 1/4 Inch Quick Connect
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
