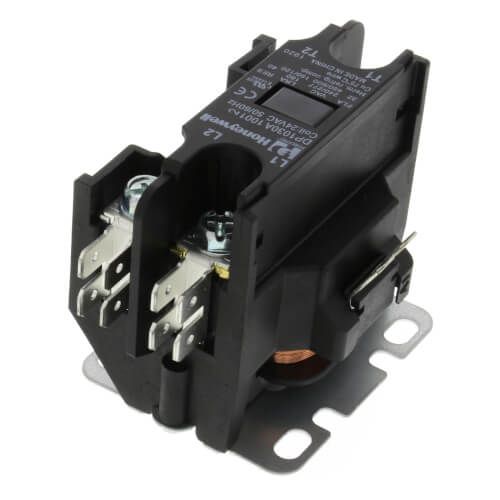

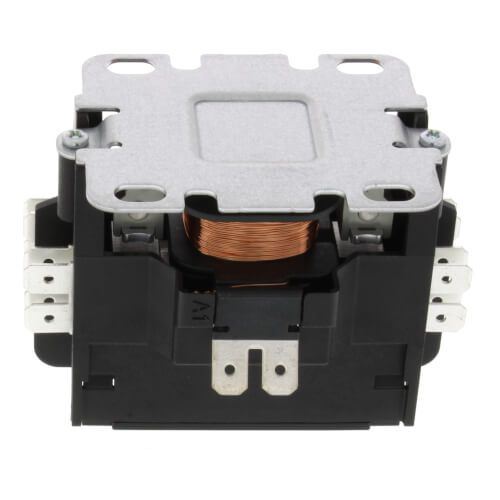

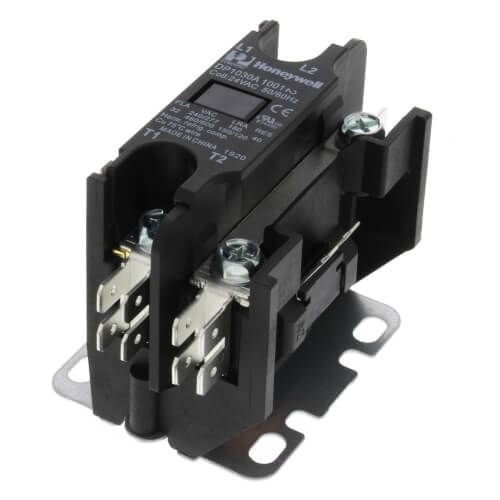

Resideo DP1030A1001 - 24 Vac 1 Pole Economy Definite Purpose Contactor (30 Amps)
Brand:
SKU
DP1030A1001
Definite Purpose Contactor
Type Electromagnetically Operated
Number of Poles 1
Current Rating 30 Amp at 240/277/480/600 Volt AC
Resistive Ampere 40 Amp at 240/277/480/600 Volt AC
Coil Voltage 24 Volt AC
Auxiliary Contact SPST
Enclosure Open
Approval UL, CSA, CUR
Terminal Type #10 to 32 Combination Head Screw
Contact Connection 1/4 Inch Quick Connect
Temperature Rating -4 to 149 Deg F
Application Heating, Cooling and Refrigeration
