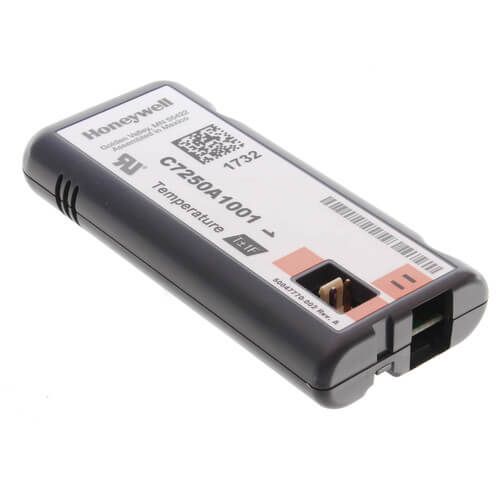

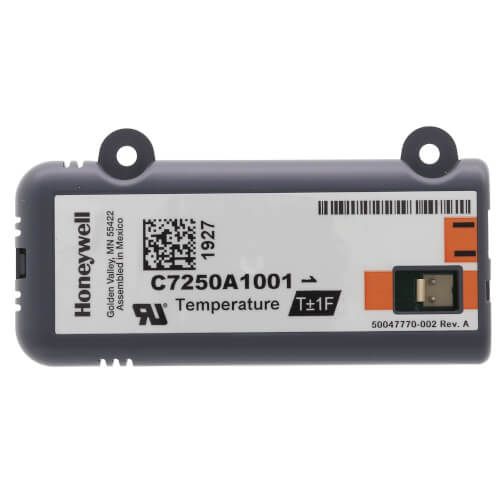

Honeywelll C7250A1001 - Electronic 20k Temp Sensor Used w/ W7220 Economizer Controller
Brand:
SKU
C7250A1001
A 20K Temperature Sensor intended for sensing mixed or discharge air in roof top packaged air conditioning equipment.
Used with a W7220 Economizer Controller
Sensor Type: 20K NTC
Electrical Connections: 2-pin header-pin style or 2-pin card edge removable terminal blocks
Mounting: Mounted in any position where it is exposed to freely circulating air
Product Type: Sensor
Temperature Range (F): -40°F to 257°F
Color: Gray
Operating Humidity: 11 to 89% RH
Used With: W7220
Height: 4-1/4"
Width: 2.17"
Depth (Inches): 0.81"
