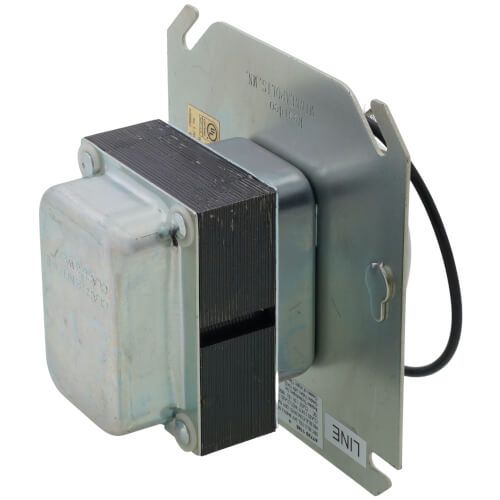

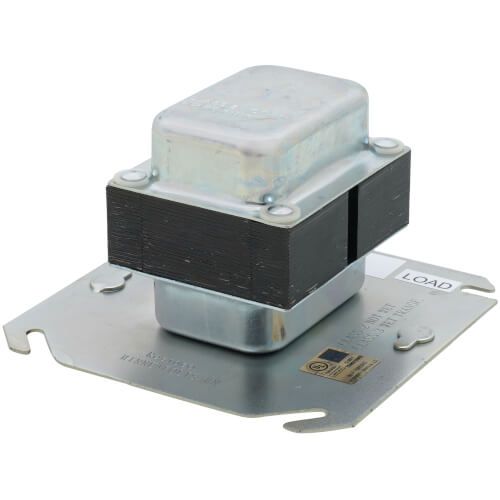

Resideo AT72D1188 - Plate Mounted 120 Vac Transformer w/ 9" Lead Wires
Brand:
SKU
AT72D1188
Application: 24v Controls
Mount: Plate
Voltage (Primary): 120V
Voltage (Secondary): 26.5 V.O.C.
Hertz: 50, 60
Temperature Range (F): -20°F - 105°F
VA Rating: 40
NEMA Rating: Type D
Height: 3-7/32"
Width: 2-7/32"
Depth: 1-1/16" into plate x 2" above plate
Wiring: 9" leadwires
Electrical Output: 24 Vac at 40 VA
