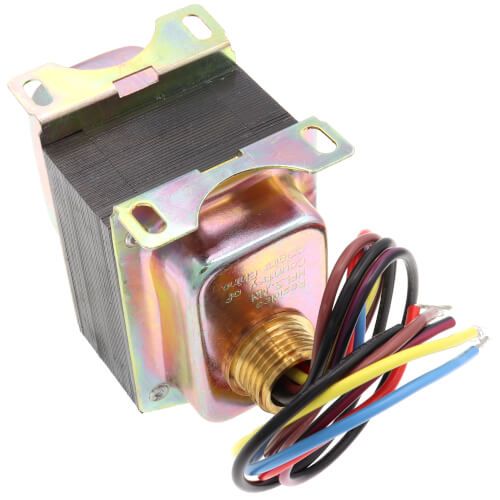

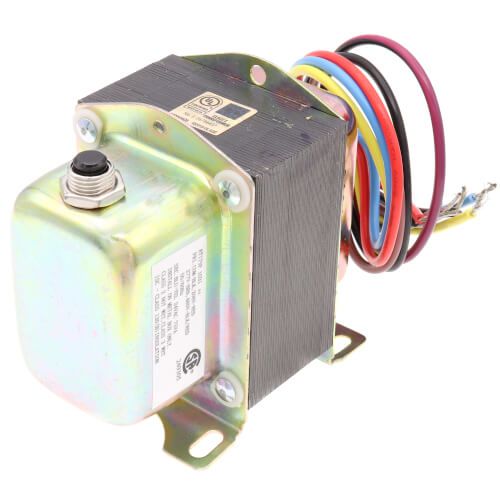

Resideo AT175F1031 - Plate/Panel Mounted 208/277/480 Vac Transformer w/ 9" Lead Wires & Button for Manually Resetting Circuit Breaker
Brand:
SKU
AT175F1031
Circuit Breaker Transformer
Primary Voltage 208/277/480 Volt AC
Secondary Voltage 24 Volt AC
Frequency Rating 60 Hertz
Power Rating 75 Volt Amp
Temperature Rise -20 to 105 Deg F
Size 2-3/16 Inch Width x 3-15/16 Inch Depth x 3-3/16 Inch Height
Mounting Plate/Panel/1/2 Inch-14 Threaded Conduit
Application Heating/Cooling Control System
Approval UL, CSA
Includes Metal End Bell
