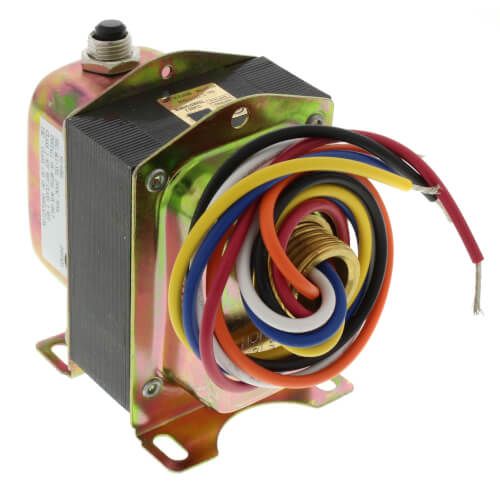

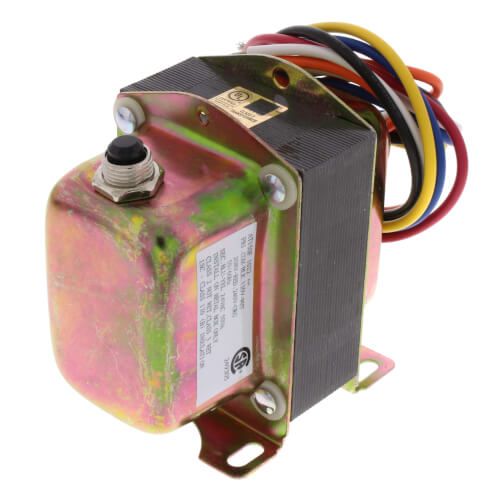

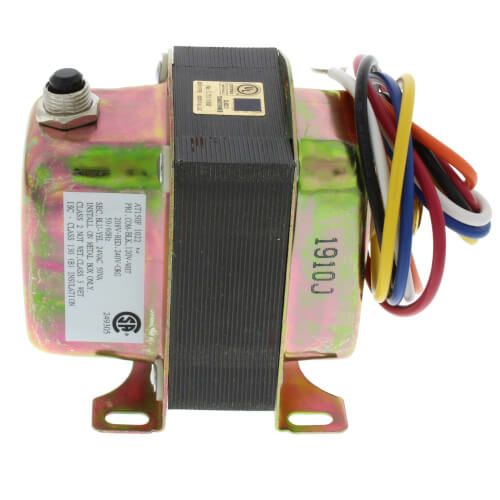

Resideo AT150F1022 - Plate or Panel Mounted 120/208/240 Vac Transformer w/ 9" Lead Wires & Metal End Bells
Brand:
SKU
AT150F1022
Specifications:
Description: Plate or panel mounted 120/208/240 Vac Transformer with 9 in. lead wires and metal end bells
Electrical Ratings: 120 Vac, 208 Vac, 240 Vac
Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
Frequency: 60 Hz
Mounting: Includes 1/2 14 NPSM conduit connector and lock nut for mounting on plate or panel (not included) with 7/8 in. knockout, and feet for surface mount.
Electrical Connections (Primary)(in): 9 in. leadwires
Electrical Connections (Secondary)(in.): 9 in. leadwires
Electrical Ratings -Output: 24 Vac at 50 VA
Dimensions: 3-3/16 in. high x 2-3/16 in. wide x 3-5/8 in. deep
Temperature Ratings: -20 F to +105 F
Includes: Button for manually resetting the circuit breaker and metal end bells.
Features:
Rated at 50 VA.
Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
Meet NEC Class 2 requirements.
Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
Application: 24v Controls
Mount: Plate, Panel
Voltage (Primary): 240v, 208v, 120v
Voltage (Secondary): 27.5 V.O.C.
Wiring: 9" leadwires
Electrical Output: 24 Vac at 50 VA
Hertz: 60
Temperature Range (F): -20°F - 105°F
VA Rating: 50
NEMA Rating: None
Height: 3-3/16"
Width: 2-3/16"
Depth (Inches): 3-5/8"
Features: Metal End Bells
