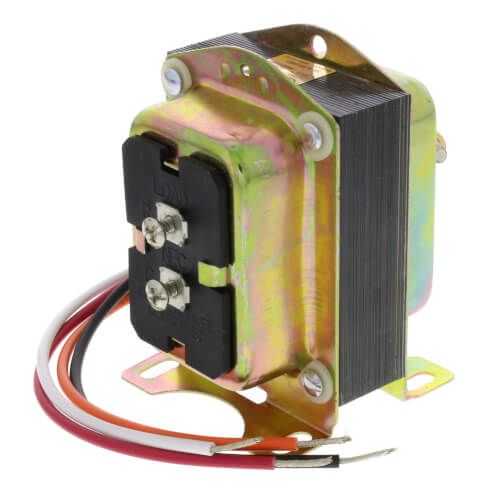

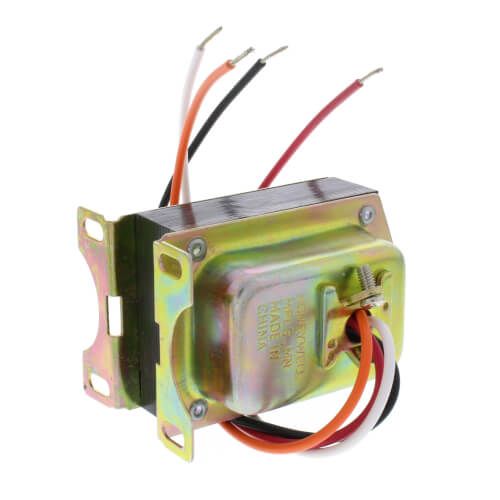

Resideo AT140A1018 - Foot Mounted 120/208/240 Vac Transformer w/ 9 in. Lead Wires (40VA)
Brand:
SKU
AT140A1018
General Purpose Transformer
Primary Voltage 120/208/240 Volt AC
Secondary Voltage 24 Volt AC
Frequency Rating 60 Hertz
Power Rating 40 Volt Amp at 24 Volt AC
Temperature Rise -20 to 105 Deg F
Size 3-3/16 Inch Height x 2-3/8 Inch Width x 3-1/8 Inch Depth
Mounting Foot/Plate/Clamp/Panel Mount
Application General Purpose
Weight 2.000 Pound
Approval UL, CSA
Includes Metal End Bell, Fixed 1/4 Inch Male Quick Connect/Color Coded Leadwire
