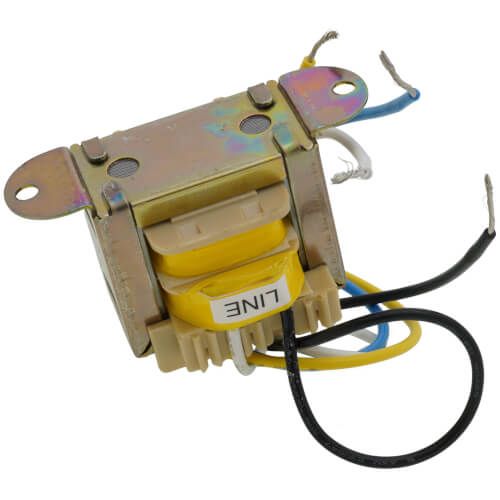

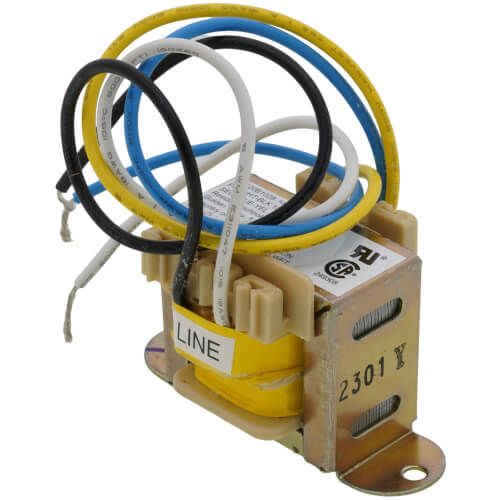

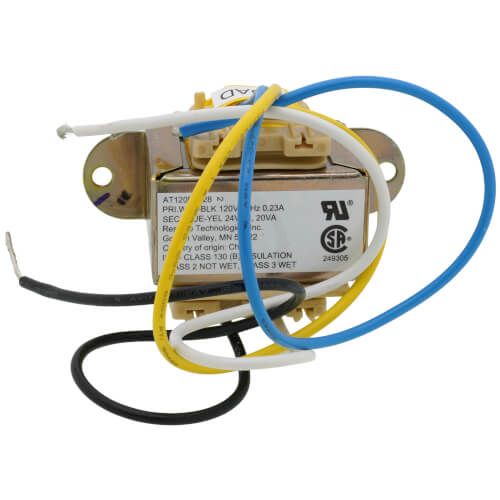

Resideo AT120B1028 - Foot Mounted 120 Vac Transformer with 9 in. Lead Wires and End Bells
Brand:
SKU
AT120B1028
General Purpose Transformer
Primary Voltage 120 Volt AC
Secondary Voltage 24 Volt AC
Frequency Rating 60 Hertz
Power Rating 20 Volt Amp at 24 Volt AC
Temperature Rise -20 to 105 Deg F
Size 1-11/16 Inch Height x 3-3/16 Inch Width x 1-3/4 Inch Depth
Mounting Foot Mount
Application General Purpose
Approval UL, CSA
Includes Metal End Bell, Fixed 1/4 Inch Male Quick Connect/Color Coded Leadwire
Resideo AT120B1028 - Foot Mounted 120 Vac Transformer with 9 in. Lead Wires and End Bells
General Purpose Transformer
Primary Voltage 120 Volt AC
Secondary Voltage 24 Volt AC
Frequency Rating 60 Hertz
Power Rating 20 Volt Amp at 24 Volt AC
Temperature Rise -20 to 105 Deg F
Size 1-11/16 Inch Height x 3-3/16 Inch Width x 1-3/4 Inch Depth
Mounting Foot Mount
Application General Purpose
Approval UL, CSA
Includes Metal End Bell, Fixed 1/4 Inch Male Quick Connect/Color Coded Leadwire
