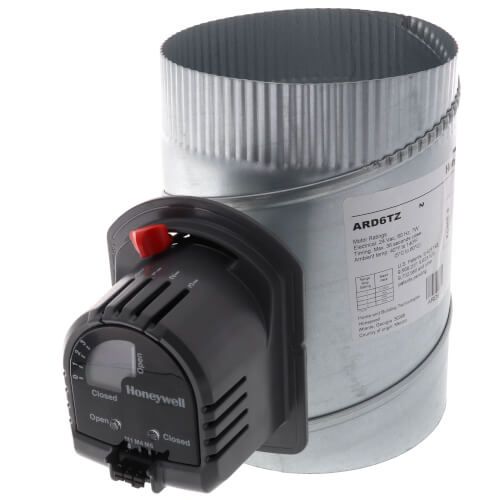

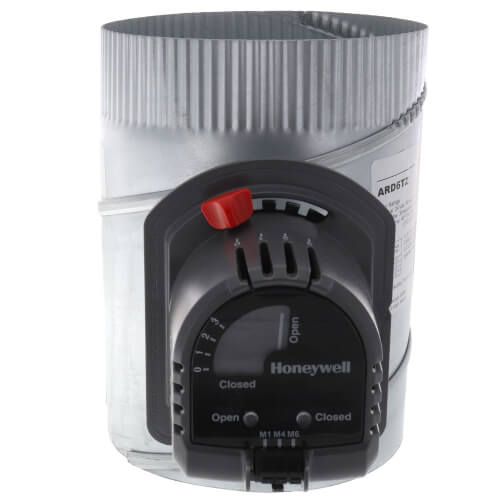

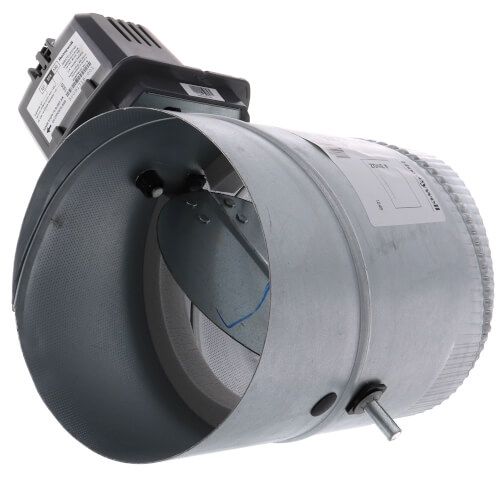

Honeywell Home ARD6TZ - 6" Round Automatic TrueZONE Damper
Brand:
SKU
ARD6TZ
Zone Control Damper
Type Automatic, Round, Single Blade
Duct Size 6 Inch Diameter
Material Thickness 24 Gauge (Frame), 22 Gauge (Blade)
Blade Material Galvanized Steel
Inclusions/Features Spring Return, Adjustable Close Position Range Stop, Fail Safe, Normally Open Operation
Motor Rating 24 Volt AC at 60 Hertz 8 Volt Amp
Motor Torque Rating 71 Inch-Ounce
Temperature Rating 40 to 140 Deg F
Pressure Drop Less than 0.0329 Inch WC at 800 Foot per Minute
Motor Angular Rotation 90 Degree
Less than 1 Percent at 1/2 Inch WC
Maximum Static Pressure Rating 1 Inch WC
Mounting Type Side or Top
Motor Type Power Closed, Spring Open
Motor Timing 30 Second (Power Open)/10 Second (Spring Return)
Wires to Motor Terminal M1-Power, M6 Common, M4 (Optional) LED Indication
Application Zone Damper
