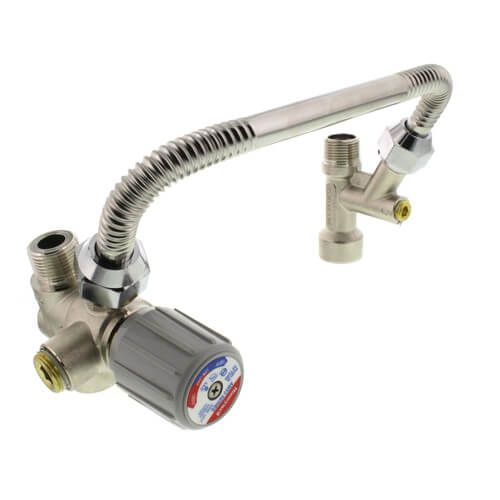

Resideo Braukmann AMX300TLF - DirectConnect Water Heater Kit w/ 3/4'' Mixing Valve, 8'' SS Corrugated Hose Connector (Lead Free)
Brand:
SKU
AMX300TLF
Application: Point of Source
Length (Inches): 8"
Connection Method: Threaded
Inlet Type: FNPT
Outlet Type: MNPT
Connection Type: MPT x FPT
Size: 3/4"
Min Temp (F): 100°F, 33°F
Max Temp (F): 212°F, 80°F
Temperature Range (F): 100°F to 212°F (hot water inlet), 33°F to 80°F (cold water inlet)
Mixed Water Supply Temperature Range (F): 100 F to 145 F
Minimum Flow Rate (GPM): 0.25 gpm; Recirculation Port: 1/2 in. NPT; Alternate Hot Port: 1/2 in. NPT
Max Pressure (PSI): 150
Flow Capacity (Cv): 2.3
Standards Met: ASSE 1017
Valve Action: Mixing
Material: Brass
Lead Free: Yes
