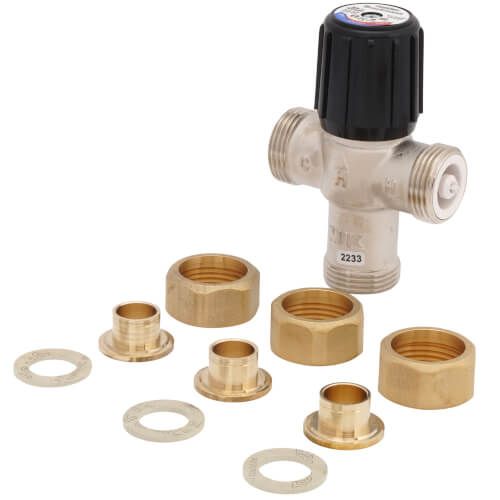

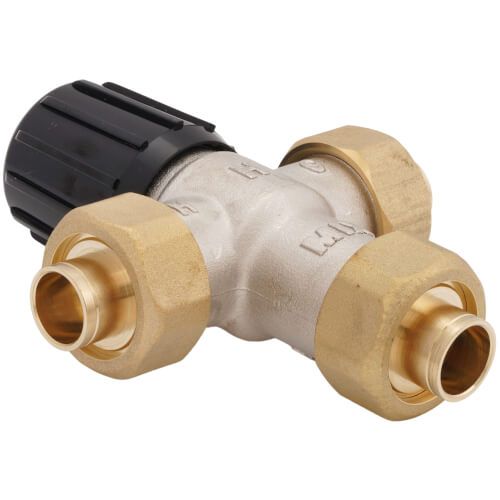

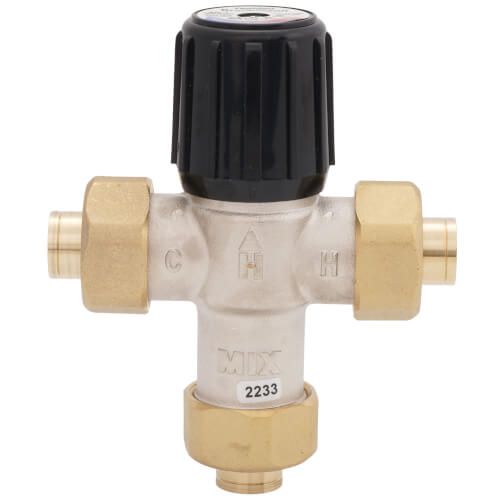

Resideo Braukmann AM100C1070-US-1LF - 1/2" Lead Free Mixing Valve, Union Sweat (70-120F)
Brand:
SKU
AM100C1070-US-1LF
Thermostatic Mixing Valve
Type Thermostatic
Nominal Size 1/2 Inch
End Connection Union Soldered x Union Soldered x Union Soldered
End to End Distance 4.6 Inch
Base to Inlet Dimension 2.8 Inch
Inlet to Mixing Outlet Dimension 2.8 Inch
Body Material Non-Stick Coated Nickel Plated Brass
Flow Rate 0.5 GPM
Temperature Rating 212 Deg F
Pressure Rating 150 PSI
Inclusions/Features Anti-Scald, Anti-Chill Protection, Proportional Valve, Dual Purpose Mixing or Diverting Valve, Tamper Resistant Design, Straight-Through Design
Application Domestic Water, Nursing Home, Public Facilities, Automatic Faucet, Radiant Floor Heating, Space Heating, Combo System, Solar Hot Water, Greenhouse, Industrial Application, Photo Processing
Applicable Standard ASSE 1017/1070, CSA, IAPMO
Lead-Free
Length 5.4 Inch
Operating Temperature 70 to 120 Deg F
Flow Capacity 1.8 Cv
O-Ring Material EPDM Rubber
