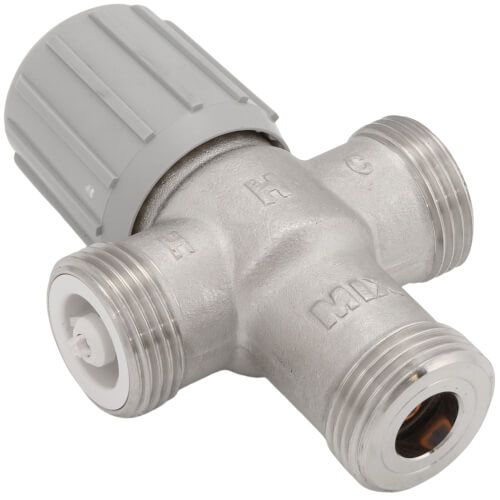

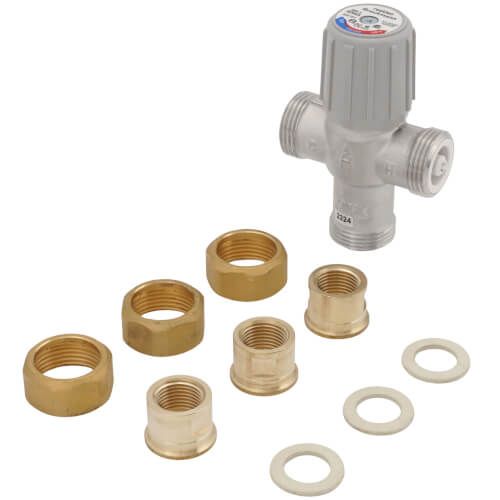

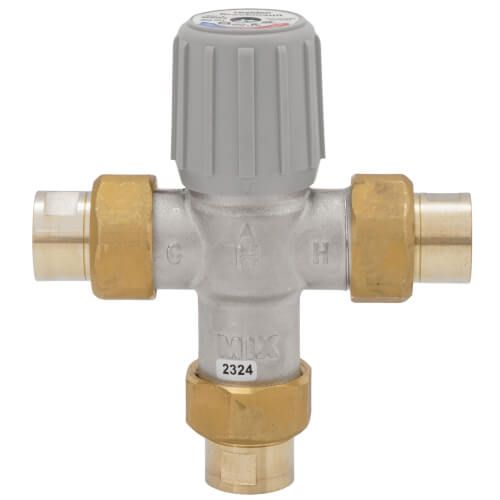

Resideo Braukmann AM100-UT-1LF - 1/2" Union NPT Lead Free Mixing Valve, 70-Degree -145-Degree F
Brand:
SKU
AM100-UT-1LF
Thermostatic Mixing Valve
Type Thermostatic
Nominal Size 1/2 Inch
End Connection Union Threaded x Union Threaded x Union Threaded
End to End Distance 4.9 Inch
Base to Inlet Dimension 2.9 Inch
Inlet to Mixing Outlet Dimension 2.9 Inch
Body Material Non-Stick Coated Nickel Plated Brass
Flow Rate 0.5 GPM
Temperature Rating 212 Deg F
Pressure Rating 150 PSI
Inclusions/Features Anti-Scald, Anti-Chill Protection, Proportional Valve, Dual Purpose Mixing or Diverting Valve, Tamper Resistant Design, Straight-Through Design
Application Domestic Water, Nursing Home, Public Facilities, Automatic Faucet, Radiant Floor Heating, Space Heating, Combo System, Solar Hot Water, Greenhouse, Industrial Application, Photo Processing
Applicable Standard ASSE 1017, CSA, IAPMO
Lead-Free
Length 5.9 Inch
Operating Temperature 70 to 145 Deg F
Flow Capacity 3.9 Cv
O-Ring Material EPDM Rubber
