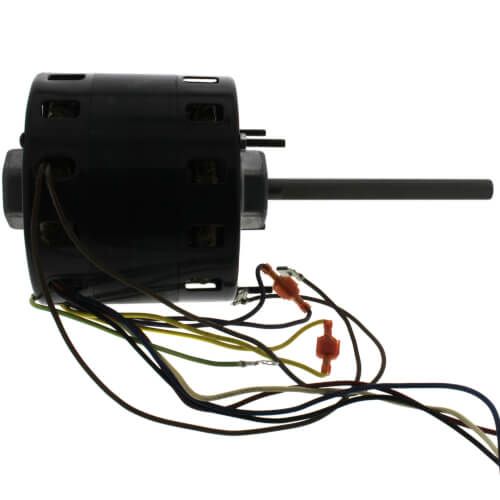

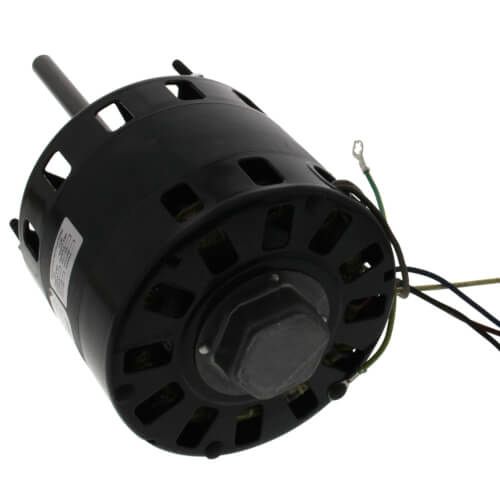

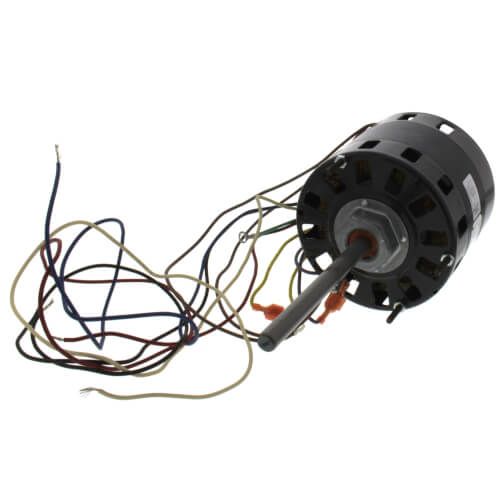

Fasco D150 - 3-Speed 1050 RPM 1/4-1/5-1/6 HP Motor (115V)
Brand:
SKU
D150
Type: Permanent Split Capacitor
Horse Power: 1/4-1/5-1/6
Voltage: 115V
RPM: 1050
Speeds: 3
Amperage: 4.7/3.5/2.7
Mount: Extended Studs
Enclosure Type: Open Air Over
Rotation: Reversible
Diameter (Inches): 5"
Phase: 1
Bearings: Sleeve
Frame Size: 42
Max Ambient Temp (°F): 104°F
Duty: Continuous
Frequency: 60 Hz
Insulation Class: B
Poles: 6
Overload Protection: Automatic
Approvals: UL
