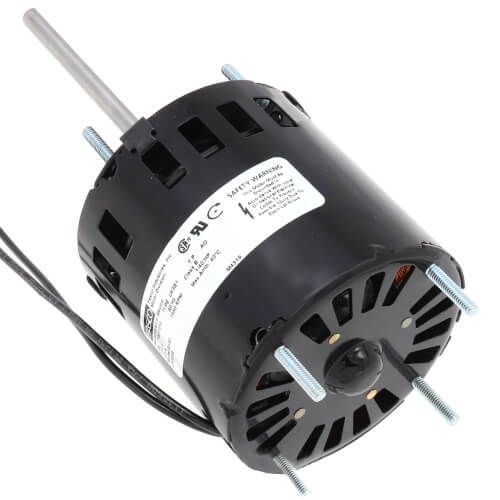

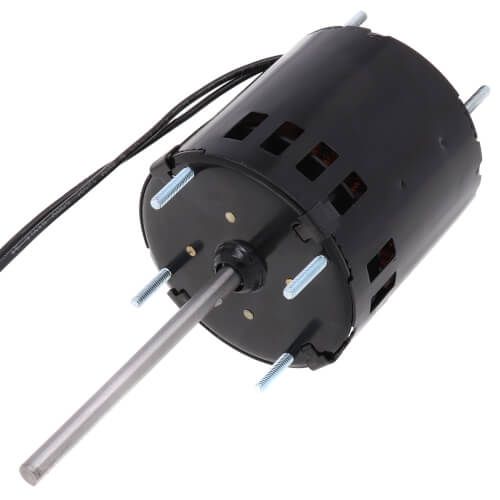

Fasco D130 - 1-Speed 1500 RPM 1/40 HP Motor (115V)
Brand:
SKU
D130
Type: Shaded Pole
Horse Power: 1/40
Voltage: 115V
RPM: 1500
Speeds: 1
Amperage: 1
Rotation: CWSE
Mount: Extended Studs
Enclosure Type: Open Air Over
Diameter (Inches): 3.3"
Phase: 1
Max Ambient Temp (°F): 104°F
Frame Size: 3.3
Bearings: Sleeve
Duty: Air Over
Frequency: 60 Hz
Insulation Class: B
Poles: 4
Overload Protection: Thermally
Approvals: UL
