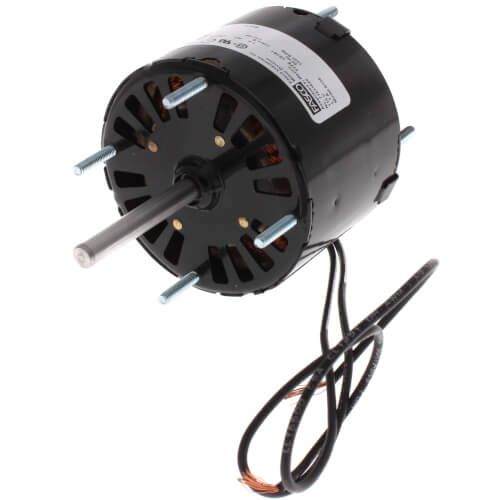

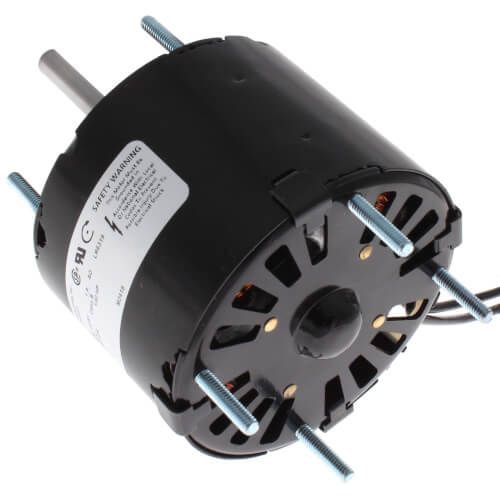

Fasco D126 - 1-Speed 1500 RPM 1/40 HP CW Motor (115V)
Brand:
SKU
D126
Type: Shaded Pole
Horse Power: 1/40
Voltage: 115V
Hertz: 60
RPM: 1500
Speeds: 1
Amperage: 1.1
Rotation: CWSE
Enclosure Type: Open Air Over
Mount: Extended Studs
Width: 2-1/2"
Phase: 1
Bearings: Sleeve
Frame Size: 3.3
Max Ambient Temp (°F): 104°F
Duty: Air Over
Frequency: 60 Hz
Insulation Class: B
Poles: 4
Overload Protection: Thermally
Approvals: UL
Fasco D126 - 1-Speed 1500 RPM 1/40 HP CW Motor (115V)
Type: Shaded Pole
Horse Power: 1/40
Voltage: 115V
Hertz: 60
RPM: 1500
Speeds: 1
Amperage: 1.1
Rotation: CWSE
Enclosure Type: Open Air Over
Mount: Extended Studs
Width: 2-1/2"
Phase: 1
Bearings: Sleeve
Frame Size: 3.3
Max Ambient Temp (°F): 104°F
Duty: Air Over
Frequency: 60 Hz
Insulation Class: B
Poles: 4
Overload Protection: Thermally
Approvals: UL
