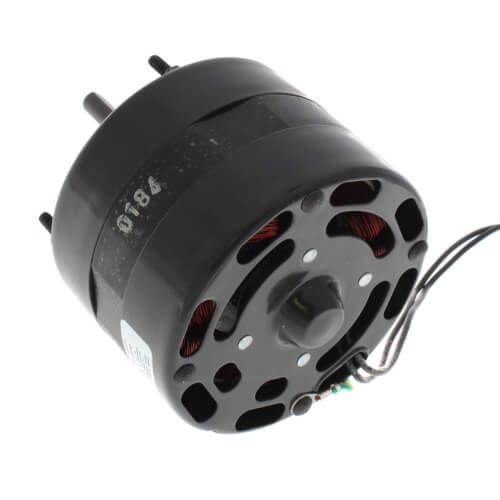

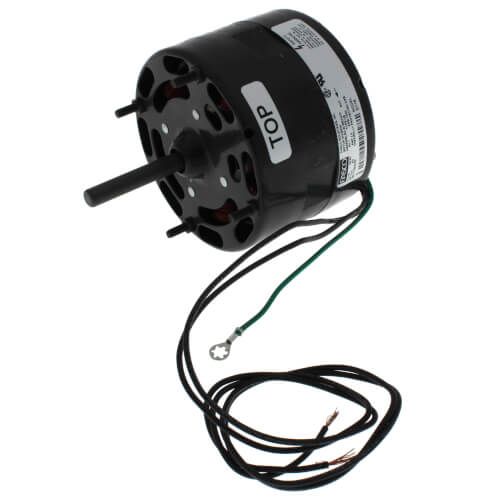

Fasco D116 - 1-Speed 1500 RPM 1/15 HP Motor (115V)
Brand:
SKU
D116
Type: Shaded Pole
Horse Power: 1/15
Voltage: 115V
RPM: 1500
Speeds: 1
Amperage: 2.4
Rotation: CWSE
Enclosure Type: Open Air Over
Mount: Extended Studs
Diameter (Inches): 4.4"
Phase: 1
Frame Size: 4.4
Max Ambient Temp (°F): 104°F
Bearings: Sleeve
Duty: Air Over
Frequency: 60 Hz
Insulation Class: A
Poles: 4
Overload Protection: Thermally
Approvals: UL
