Fasco D1124 - 1-Speed 1550 RPM 1/20 HP CW Motor (115V)

Statistic Icon
Brand:
SKU
D1124
Type: Shaded Pole
Horse Power: 1/20
Voltage: 115V
RPM: 1550
Speeds: 1
Amperage: 2.1
Rotation: CWSE
Mount: Extended Studs
Enclosure Type: Open Air Over
Width: 3"
OEM: Bohn
Phase: 1
Max Ambient Temp (°F): 104°F
Bearings: Sleeve
Frame Size: 3.3
Duty: Air Over
Frequency: 60 Hz
Insulation Class: B
Poles: 4
Overload Protection: Thermally
Approvals: UL

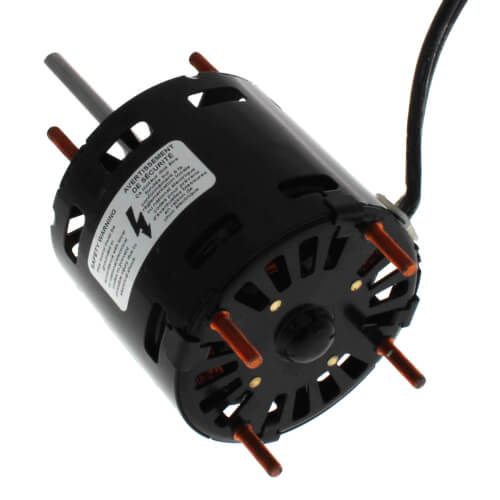

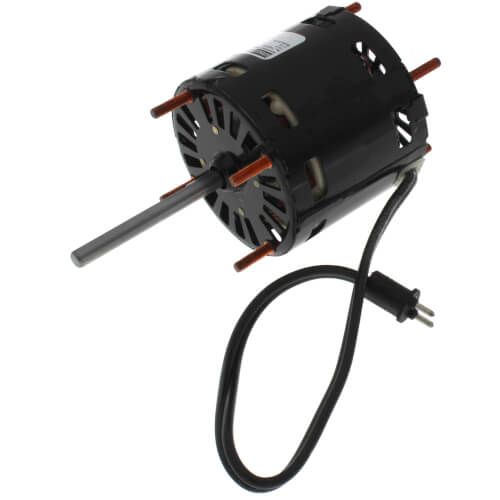

main product photo

Fasco D1124 - 1-Speed 1550 RPM 1/20 HP CW Motor (115V)

Brand:
AvailabilityIn stock (152)
SKU
D1124
Type: Shaded Pole
Horse Power: 1/20
Voltage: 115V
RPM: 1550
Speeds: 1
Amperage: 2.1
Rotation: CWSE
Mount: Extended Studs
Enclosure Type: Open Air Over
Width: 3"
OEM: Bohn
Phase: 1
Max Ambient Temp (°F): 104°F
Bearings: Sleeve
Frame Size: 3.3
Duty: Air Over
Frequency: 60 Hz
Insulation Class: B
Poles: 4
Overload Protection: Thermally
Approvals: UL
Statistic Icon
- +
$104.88
