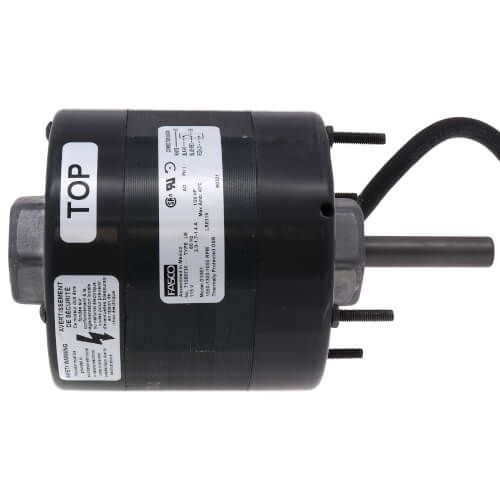

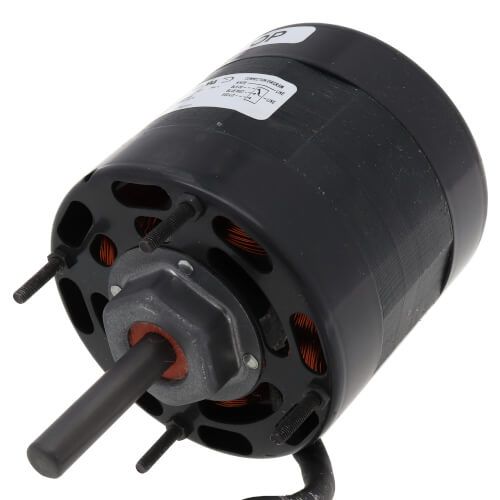

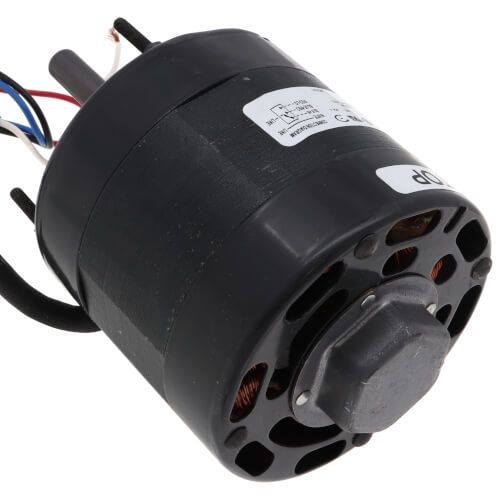

Fasco D1061 - 3-Speed 1500 RPM 1/20-1/30-1/60 HP Motor (115V)
Brand:
SKU
D1061
Type: Shaded Pole
Horse Power: 1/20-1/30-1/60
Voltage: 115V
RPM: 1500
Speeds: 3
Amperage: 2-1.7-1.4
Enclosure Type: Open Air Over
Rotation: CCWSE
Mount: Extended Studs
Diameter (Inches): 4.4"
OEM: Greenheck Fan
Phase: 1
Frame Size: 4.4
Bearings: Sleeve
Max Ambient Temp (°F): 104°F
Duty: Air Over
Frequency: 60 Hz
Insulation Class: A
Poles: 4/6
Overload Protection: Thermally
Approvals: UL
