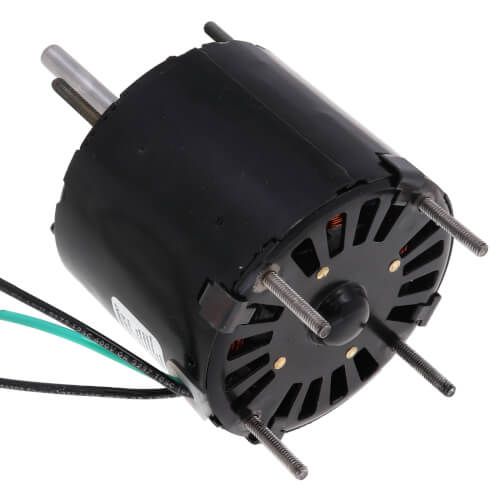

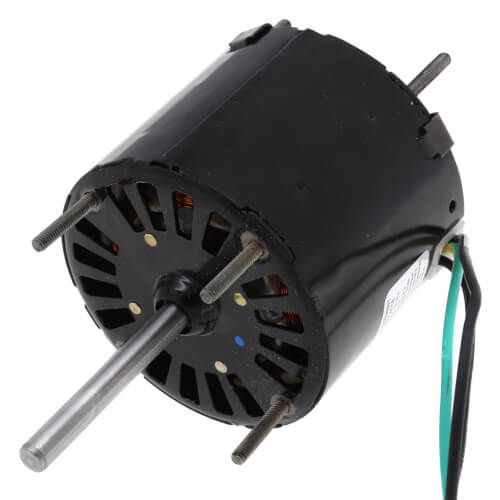

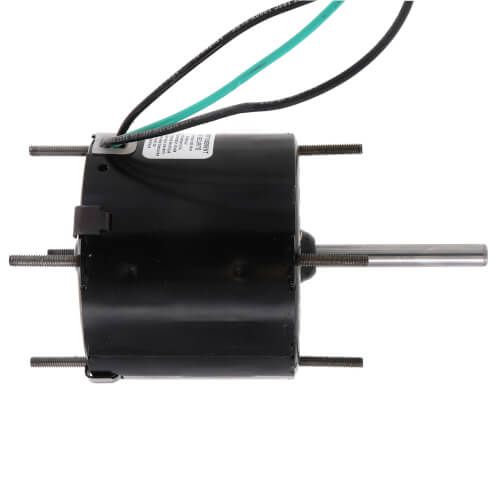

Fasco D0030 - 3.3" 1550 RPM 1/25 HP 4P Shaded Pole Motor (115V)
Brand:
SKU
D0030
Type: Shaded Pole
Horse Power: 1/25
Voltage: 115V
RPM: 1550
Speeds: 1
Amperage: 1.7
Mount: Extended Studs
Rotation: CWSE
Diameter (Inches): 3.3"
OEM: Singer
Enclosure Type: Open Air Over
Phase: 1
Max Ambient Temp (°F): 104°F
Frame Size: 3.3
Bearings: Sleeve
Duty: Air Over
Frequency: 60 Hz
Insulation Class: B
Poles: 4
Overload Protection: Thermally
Approvals: UL
