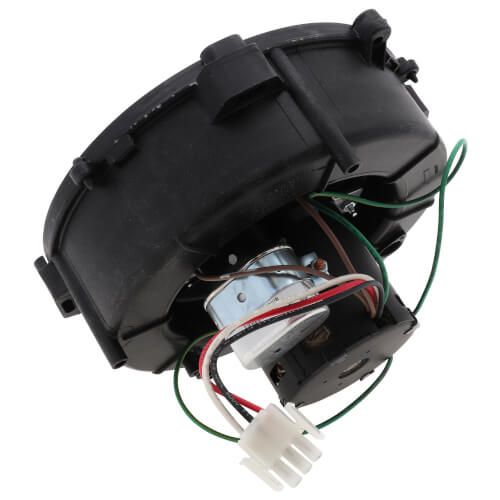

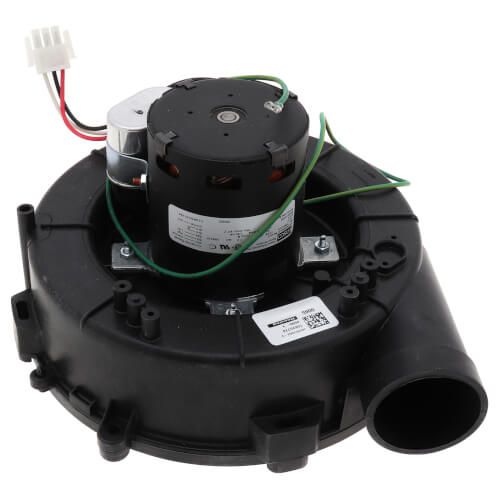

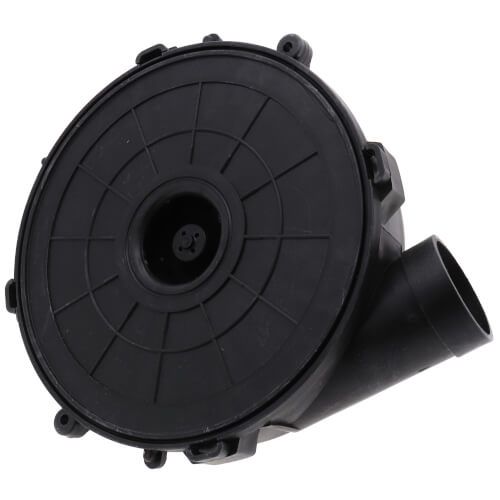

Fasco A209 - 2-Speed 3400 RPM Lennox Draft Inducer Motor (115V)

Statistic Icon
Brand:
SKU
A209
Voltage: 115V
Amperage: 0.8
Speeds: 2
Air Flow Capacity (CFM): 151-500
RPM: 3200/2800
OEM: Lennox
Rotation: CCW
Horse Power: 1/20
Bearings: Ball
Outlet Shape: Round
Type: Permanent Split Capacitor
Outlet Flange: No
Approvals: CSA, UL
Hertz: 60
Max Ambient Temp (°F): 104°F
Enclosure Type: Open
Insulation Class: B
Overload Protection: Thermally
Phase: 1
main product photo

Fasco A209 - 2-Speed 3400 RPM Lennox Draft Inducer Motor (115V)

Brand:
AvailabilityIn stock (3)
SKU
A209
Voltage: 115V
Amperage: 0.8
Speeds: 2
Air Flow Capacity (CFM): 151-500
RPM: 3200/2800
OEM: Lennox
Rotation: CCW
Horse Power: 1/20
Bearings: Ball
Outlet Shape: Round
Type: Permanent Split Capacitor
Outlet Flange: No
Approvals: CSA, UL
Hertz: 60
Max Ambient Temp (°F): 104°F
Enclosure Type: Open
Insulation Class: B
Overload Protection: Thermally
Phase: 1
Statistic Icon
- +
$384.51
