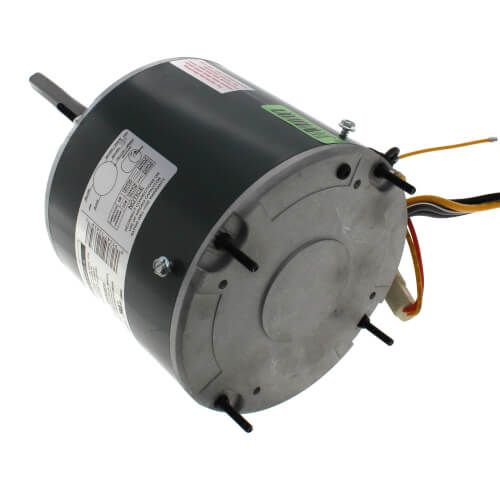

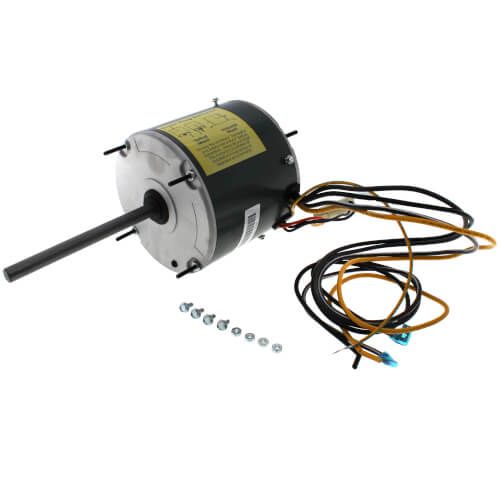

DiversiTech WG840204 - 1/4 HP, 208-230 VAC (825 RPM) Condenser Fan Motor
Brand:
SKU
WG840204
FEATURE 1: Motors feature reversing plugs, extended thru bolts, 36 inch leads and low power consumption.
FEATURE 2: Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life.
FEATURE 3: Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently.
FEATURE 4: Run capacitor connections are insulated for increased safety and flag disconnects are provided.
VOLTS: 208 - 230
RATED HORSEPOWER (HP): 1/4
HERTZ: 60
AMPS: 2
BEARING: Ball
BODY DIAMETER ( IN.): 5.625
CAPACITOR: 5/370
ENCLOSURE: Totally Enclosed
INSULATION CLASS: B
MOTOR TYPE: PSC
MOUNTING: Belly Band
RPM: 825
SPEEDS: 1
TEMP. RATING: 60° C / 140° F
SHAFT ( IN.): 1/2 in. x 5 in.
DUCTED OR DUCTLESS: Ducted
