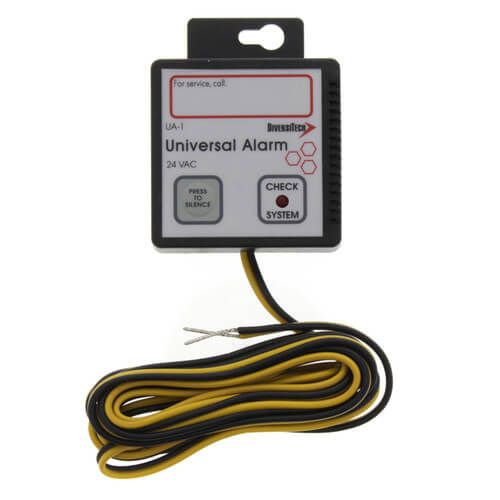

DiversiTech UA-1 - Universal Alarm, 24VACor (120V)
Brand:
SKU
UA-1
FEATURE 1: UA-1 derives power from the HVAC control circuit thus doesn't require a separate power source.
FEATURE 2: Can be connected across normally closed switches such as those found in condensate pumps and condensate overflow switches found in typical residential HVAC systems.
FEATURE 3: The Universal Alarm may be operated on “phantom” current provided by typical HVAC contactor coils. This allows the alarm to be wired in parallel with existing condensate pump shut off circuits not equipped for alarm contacts.

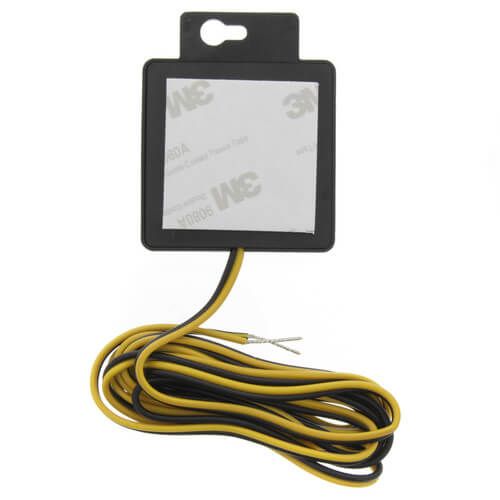

FEATURE 4: The alarm is provided with 2 wire nuts, a sheet metal screw, and double-sided tape for convenient installation options.
FEATURE 5: The alarm is provided with 2 wire nuts, a sheet metal screw, and double-sided tape for convenient installation options.

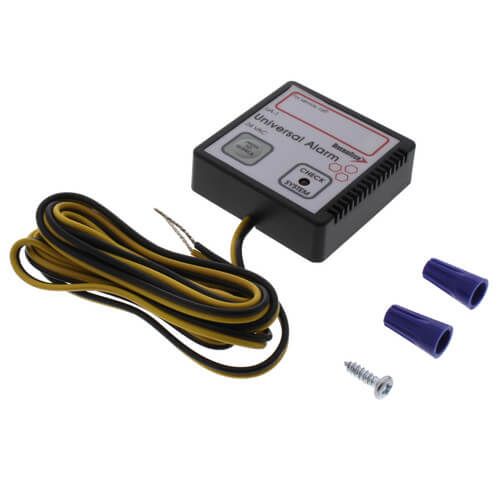

INCLUDES: 2 Wire Nuts, 1 Sheet Metal Screw, Mounting Tape
PRODUCT TYPE: N/A
APPLICATION: Monitoring Device
UL LISTED: No
ALERT INDICATOR: Audible_Visual
ELECTRICAL CLASSIFICATION: Class 2
ELECTRICAL CONNECTION TYPE: 2-Wire
PLENUM RATED: No
RATED CURRENT (A): 0.035
RATED VOLTAGE: 24VAC
SWITCH MODE: Normally closed (N/C)
TEST SWITCH / BUTTON: Yes
DUCTED OR DUCTLESS: Ducted
