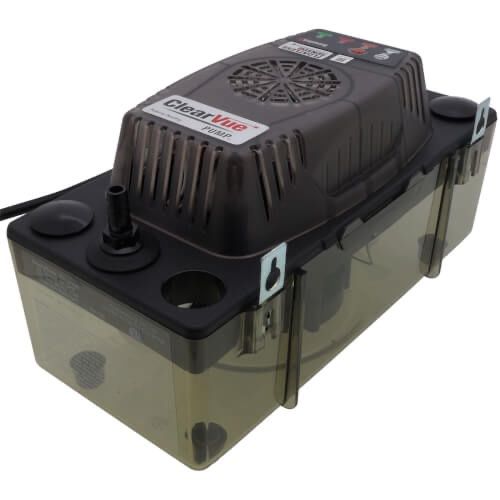

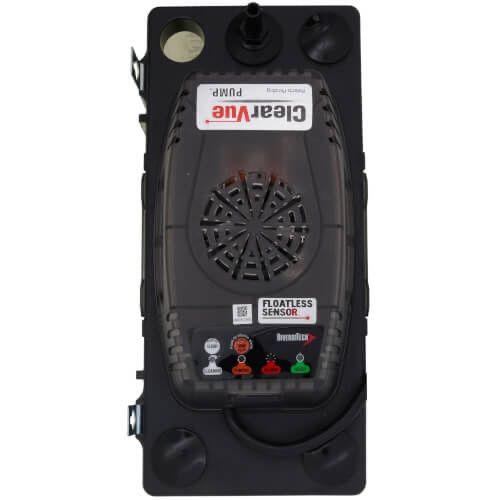

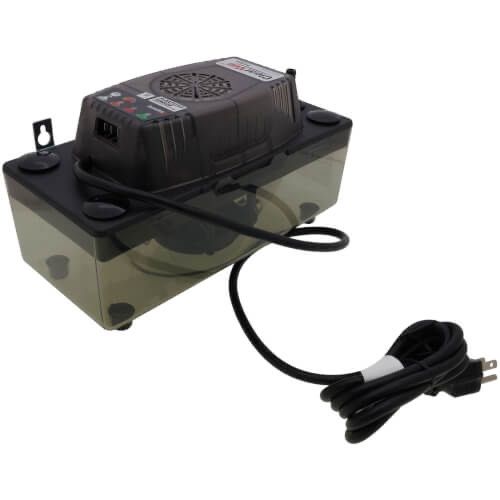

DiversiTech IQP-120 - ClearVue Condensation Pump w/ Variable Speed Pump & Floatless Sensor (120V)

$10.00
FEATURE 1: Self cleaning feature detects when a drain line is partially or fully clogged, increasing the pressure in the drain line to clear the clog
FEATURE 2: The Floatless Sensor™ eliminates many of the mechanical problems associated with conventional condensate pumps
FEATURE 3: Reversible deck for more installation options
FEATURE 4: 22 ft maximum lift height
FEATURE 5: Translucent tank for easy and fast inspection
FEATURE 6: Built-in safety overflow switch with alarm and run contacts shuts the system down preventing overflow
FEATURE 7: LED and audible indicators confirm pump status
FEATURE 8: Removable check valve for easy cleaning
FEATURE 9: 4 inlet holes
INCLUDES: N/A
COLOR: Gray
VOLTS: 115
APPLICATION: General Purpose Condensate Pump_HVAC/R
HERTZ: 60
HORSEPOWER: 1/30
UL LISTED: No
AMPS: 1.9
DISCHARGE LINE (IN.): 3/8
FLOATLESS SENSOR: Yes
GPH (GAL./HR.) @ 10 FT. LIFT: 108
HIGH LEVEL SWITCH: Yes
INPUT TYPE: NEMA 5-15 Plug
MAX CONDENSATE TEMP. (DEGREES): 160°F
MAX FLOW RATE (GPH): 132
MAX LIFT HEIGHT (FT.): 22
NO. OF INLETS: 4
SELF-CLEANING: Yes
TANK CAPACITY (GAL.): 1/2
VARIABLE SPEED AND LIFT: Yes
SOUND LEVEL DB(A) @ 3 FT.: N/A
DUCTED OR DUCTLESS: Ducted
COLOR CODE: N/A
PRIMARY UOM: Each
PRIMARY DEPTH (INCHES): 12.25
PRIMARY WIDTH (INCHES): 6
PRIMARY HEIGHT (INCHES): 6.75
PRIMARY WEIGHT (LBS): 5
QUICK SHIP FLAG: No

More Information
Package Quantity 1 Item
UPC 0095247136087
