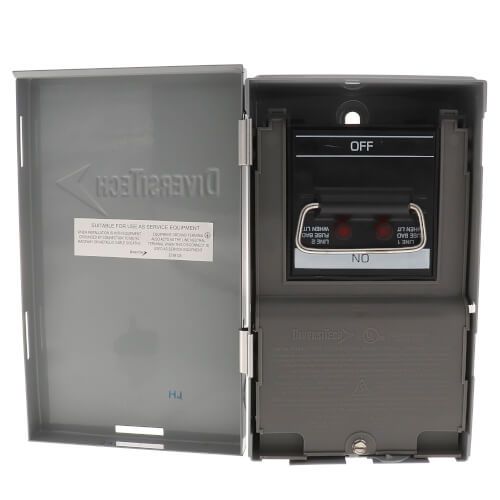

DiversiTech DDS-60 - 60A Fused A/C Disconnect w/ Side Open (240V)
Brand:
SKU
DDS-60
FEATURE 1: Constructed for outdoor use, it is rain tigHigh Temperature and sleet resistant.
FEATURE 2: The line, load, and ground terminals are aligned for ease of wiring.
FEATURE 3: Reversible door which opens to either left or rigHigh Temperature and also opens more than 180° for maximum access and has a full dead front
FEATURE 4: Fused model designed with fuses in pull-out handle for easy replacement.
INCLUDES: N/A
POWER SUPPLY: Single Phase
APPLICATION: HVAC/R
CUL LISTED: Yes
MAX VOLTS (V): 240
UL LISTED: Yes
AMPS: 60
DISCONNECT MECHANISM: Pull-Out Handle
FUSED / NON-FUSED: Non-Fusible
NEMA RATING: 3R (Rain & Sleet Resistant)
NO. OF FUSES: 2
TOP OR SIDE OPEN: Side
PRIMARY UOM: Each
PRIMARY DEPTH (INCHES): 3
PRIMARY WIDTH (INCHES): 5.25
PRIMARY HEIGHT (INCHES): 8.63
PRIMARY WEIGHT (LBS): 3.1
